U.S. Motors

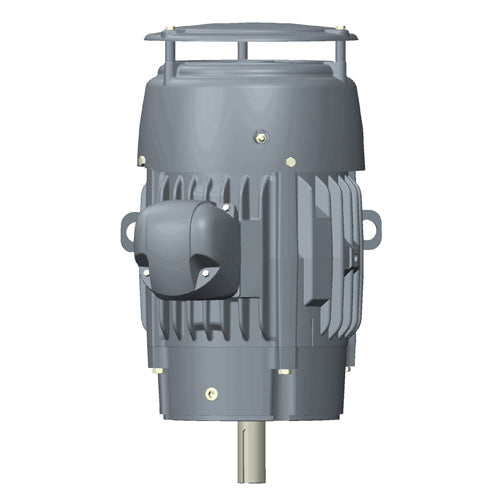

C7P1DCR U.S. Motors Vertical C-Face Motor (7-1/2 HP, 3600 RPM, 208-230/460 Voltage, 213TC Frame)
C7P1DCR U.S. Motors Vertical C-Face Motor (7-1/2 HP, 3600 RPM, 208-230/460 Voltage, 213TC Frame)
No reviews
SKU:C7P1DCR
Regular price
$1,379.88 USD
Regular price
Sale price
$1,379.88 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motor C7P1DCR, Nema Premium Efficient Vertical C-Face Motor Type, CORRO-DUTY Series, 7-1/2 HP, 3600 RPM, 208-230/460 Voltage, 213TC Frame,
| Applications | |
| For pulp & paper, mill & chemical and any other severe duty environments found in the process industries. | |
| Features | |
| Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power | |
| Stainless Steel Nameplate (with "CE" Mark) | |
| Shaft Slinger On Both Ends For IP54 Protection | |
| Regreasable Bearings 140 Frame & Up, Lifting Provisions 180 Frame & Up | |
| Special Balance (< 0.08 In/Sec Vibration) | |
| Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard | |
| All Cast Iron Construction (Steel Frame On 140 Frame) | |
| Corrosion Resistant Mill & Chemical Duty Paint | |
| 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power | |
| 50 Hz. rated at 190/380V (140-250 Frame) or 380V (280 Frame & Larger) | |
| Open Bearings 180-447 (Double Shielded Bearings on 140 Frame) | |
Specifications | |
Brand |
U.S. Motor |
Catalog Number |
C7P1DCR |
Type |
Nema Premium Efficient Vertical C-Face Motor |
Series |
CORRO-DUTY |
HP |
7-1/2 |
RPM |
3600 |
Voltage |
208-230/460 |
Frame |
213TC |
NEMA Nom. Eff. |
91 .0 |
Full Load Amps |
19 .9-17 .8/8 .9 |
Ship Wt. (lbs.) |
160 |
Enclosure |
TEFC |
Phase |
Three |
Hz |
60 |
Insulation |
Class F |
Construction |
Cast Iron |
Paint |
Corrosion Resistant Mill & Chemical Duty |
Protection |
IP54 |
Service Factor @ 60 Hz |
1.15 |
Hardware |
Zinc Plated |
Support Documents (pdf) |
