U.S. Motors

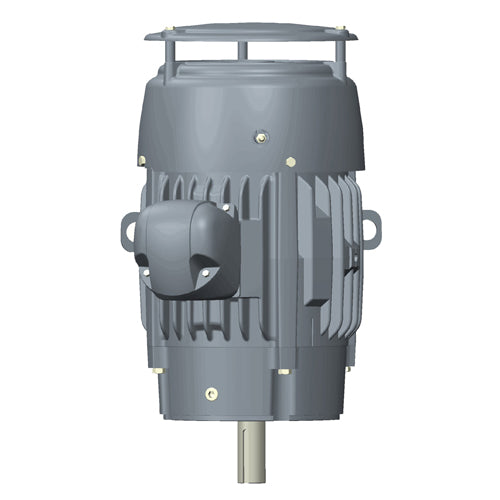

C75P2FSCR U.S. Motors Vertical C-Face Motor (75 HP, 1800 RPM, 460 Voltage, 365TSC Frame)
C75P2FSCR U.S. Motors Vertical C-Face Motor (75 HP, 1800 RPM, 460 Voltage, 365TSC Frame)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:C75P2FSCR
Regular price
$8,476.70 USD
Regular price
$0.00 USD
Sale price
$8,476.70 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
U.S. Motor C75P2FSCR, Nema Premium Efficient Vertical C-Face Motor Type, CORRO-DUTY Series, 75 HP, 1800 RPM, 460 Voltage, 365TSC Frame,
| Applications | |
| For pulp & paper, mill & chemical and any other severe duty environments found in the process industries. | |
| Features | |
| Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power | |
| Stainless Steel Nameplate (with "CE" Mark) | |
| Shaft Slinger On Both Ends For IP54 Protection | |
| Regreasable Bearings 140 Frame & Up, Lifting Provisions 180 Frame & Up | |
| Special Balance (< 0.08 In/Sec Vibration) | |
| Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard | |
| All Cast Iron Construction (Steel Frame On 140 Frame) | |
| Corrosion Resistant Mill & Chemical Duty Paint | |
| 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power | |
| 50 Hz. rated at 190/380V (140-250 Frame) or 380V (280 Frame & Larger) | |
| Open Bearings 180-447 (Double Shielded Bearings on 140 Frame) | |
Specifications | |
Brand |
U.S. Motor |
Catalog Number |
C75P2FSCR |
Type |
Nema Premium Efficient Vertical C-Face Motor |
Series |
CORRO-DUTY |
HP |
75 |
RPM |
1800 |
Voltage |
460 |
Frame |
365TSC |
NEMA Nom.Eff. |
95 .4 |
Full Load Amps |
84 |
Ship Wt. (lbs.) |
910 |
Enclosure |
TEFC |
Phase |
Three |
Hz |
60 |
Insulation |
Class F |
Construction |
Cast Iron |
Paint |
Corrosion Resistant Mill & Chemical Duty |
Protection |
IP54 |
Service Factor @ 60 Hz |
1.15 |
Hardware |
Zinc Plated |
Support Documents (pdf) | ||||
