U.S. Motors

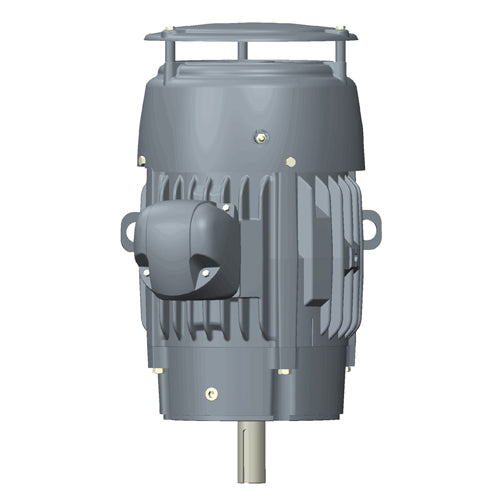

C60P2FSCR U.S. Motors Vertical C-Face Motor (60 HP, 1800 RPM, 460 Voltage, 364TSC Frame)

C60P2FSCR U.S. Motors Vertical C-Face Motor (60 HP, 1800 RPM, 460 Voltage, 364TSC Frame)

[COUNT] shoppers are looking at this right now

C60P2FSCR

$6,915.48 USD
$0.00 USD $6,915.48 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motor C60P2FSCR, Nema Premium Efficient Vertical C-Face Motor Type, CORRO-DUTY Series, 60 HP, 1800 RPM, 460 Voltage, 364TSC Frame,

Applications
For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Stainless Steel Nameplate (with "CE" Mark)
Shaft Slinger On Both Ends For IP54 Protection
Regreasable Bearings 140 Frame & Up, Lifting Provisions 180 Frame & Up
Special Balance (< 0.08 In/Sec Vibration)
Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard
All Cast Iron Construction (Steel Frame On 140 Frame)
Corrosion Resistant Mill & Chemical Duty Paint
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
50 Hz. rated at 190/380V (140-250 Frame) or 380V (280 Frame & Larger)
Open Bearings 180-447 (Double Shielded Bearings on 140 Frame)

Specifications

Brand
U.S. Motor
Catalog Number
C60P2FSCR
Type
Nema Premium Efficient Vertical C-Face Motor
Series
CORRO-DUTY
HP
60
RPM
1800
Voltage
460
Frame
364TSC
NEMA Nom.Eff.
95 .0
Full Load Amps
69
Ship Wt. (lbs.)
750
Enclosure
TEFC
Phase
Three
Hz
60
Insulation
Class F
Construction
Cast Iron
Paint
Corrosion Resistant Mill & Chemical Duty
Protection
IP54
Service Factor @ 60 Hz
1.15
Hardware
Zinc Plated
