U.S. Motors

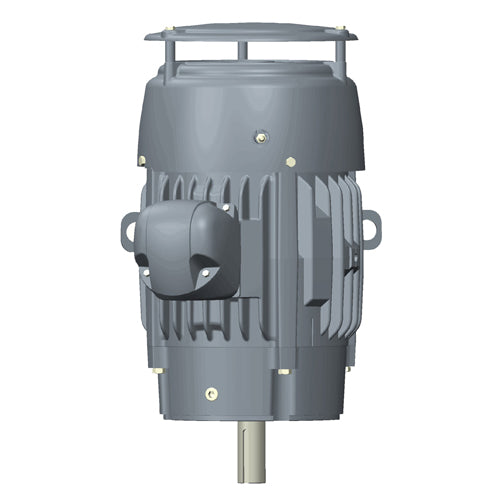

C32P2DCR U.S. Motors Vertical C-Face Motor (1-1/2 HP, 1800 RPM, 208-230/460 Voltage, 145TC Frame)
C32P2DCR U.S. Motors Vertical C-Face Motor (1-1/2 HP, 1800 RPM, 208-230/460 Voltage, 145TC Frame)
SKU:C32P2DCR
Regular price
$765.55 USD
Regular price
Sale price
$765.55 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motor C32P2DCR, Nema Premium Efficient Vertical C-Face Motor Type, CORRO-DUTY Series, 1-1/2 HP, 1800 RPM, 208-230/460 Voltage, 145TC Frame,
| Applications | |
| For pulp & paper, mill & chemical and any other severe duty environments found in the process industries. | |
| Features | |
| Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power | |
| Stainless Steel Nameplate (with "CE" Mark) | |
| Shaft Slinger On Both Ends For IP54 Protection | |
| Regreasable Bearings 140 Frame & Up, Lifting Provisions 180 Frame & Up | |
| Special Balance (< 0.08 In/Sec Vibration) | |
| Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard | |
| All Cast Iron Construction (Steel Frame On 140 Frame) | |
| Corrosion Resistant Mill & Chemical Duty Paint | |
| 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power | |
| 50 Hz. rated at 190/380V (140-250 Frame) or 380V (280 Frame & Larger) | |
| Open Bearings 180-447 (Double Shielded Bearings on 140 Frame) | |
Specifications | |
Brand |
U.S. Motor |
Catalog Number |
C32P2DCR |
Type |
Nema Premium Efficient Vertical C-Face Motor |
Series |
CORRO-DUTY |
HP |
1-1/2 |
RPM |
1800 |
Voltage |
208-230/460 |
Frame |
145TC |
NEMA Nom. Eff. |
86 .5 |
Full Load Amps |
4 .5-4 .3/2 .1 |
Ship Wt. (lbs.) |
65 |
Enclosure |
TEFC |
Phase |
Three |
Hz |
60 |
Insulation |
Class F |
Construction |
Cast Iron |
Paint |
Corrosion Resistant Mill & Chemical Duty |
Protection |
IP54 |
Service Factor @ 60 Hz |
1.15 |
Hardware |
Zinc Plated |
Support Documents (pdf) |
