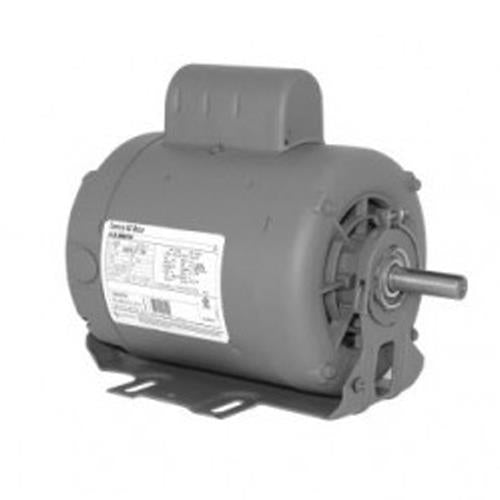

C231 Century Capacitor Start Resilient Base Motor (1/3 HP, 115/208-230 Volts, 56 Frame, 1140 RPM)

C231 Century Capacitor Start Resilient Base Motor (1/3 HP, 115/208-230 Volts, 56 Frame, 1140 RPM)

C231

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
C231 Century Capacitor Start Resilient Base Motor (1/3 HP, 115/208-230 Volts, 56 Frame, 1140 RPM)

Applications
Compressors, pumps, conveyors, milking machines, blowers, fans
Features
Class A and B Insulation; 2, 4 and 6 Pole; High Start Torque; 40?C Ambient; Open Construction; 60 Hz; Reversible; Sleeve & Ball Bearing

Tech Specs.

Brand
A.O. Smith
Model Number
C231
HP
1/3
RPM
1140
Volts
115/208-230
Full Load Amps
6.0/3.0-3.0
Service Factor
1.35
Bearings
Sleeve
Frame
56
Apx. Wt. (lb)
30
Enclosure
Open D.P.
Aprox "C"
11.4
Dim "AG"
9.5
Protector
None
Type
Capacitor Start Resilient Base Motor

Support Documents (pdf)

Product Literature
