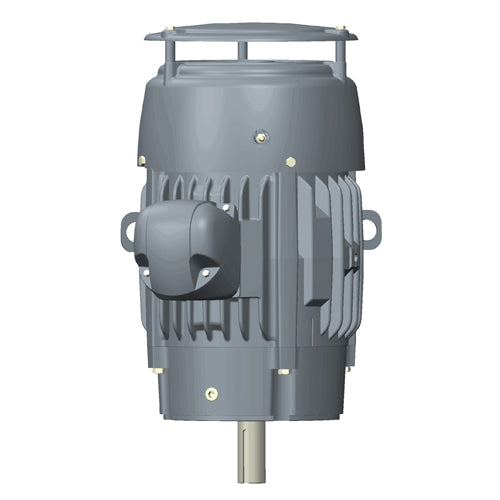

C1P2DCR U.S. Motors Vertical C-Face Motor (1 HP, 1800 RPM, 208-230/460 Voltage, 145TC Frame)

C1P2DCR U.S. Motors Vertical C-Face Motor (1 HP, 1800 RPM, 208-230/460 Voltage, 145TC Frame)

C1P2DCR

$703.67 USD
$703.67 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motor C1P2DCR, Nema Premium Efficient Vertical C-Face Motor Type, CORRO-DUTY Series, 1 HP, 1800 RPM, 208-230/460 Voltage, 145TC Frame,
Applications
For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
Stainless Steel Nameplate (with "CE" Mark)
Shaft Slinger On Both Ends For IP54 Protection
Regreasable Bearings 140 Frame & Up, Lifting Provisions 180 Frame & Up
Special Balance (< 0.08 In/Sec Vibration)
Oversized Cast Iron Conduit Box - 1 Size Larger Than NEMA Standard
All Cast Iron Construction (Steel Frame On 140 Frame)
Corrosion Resistant Mill & Chemical Duty Paint
40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power
50 Hz. rated at 190/380V (140-250 Frame) or 380V (280 Frame & Larger)
Open Bearings 180-447 (Double Shielded Bearings on 140 Frame)

Specifications

Brand
U.S. Motor
Catalog Number
C1P2DCR
Type
Nema Premium Efficient Vertical C-Face Motor
Series
CORRO-DUTY
HP
1
RPM
1800
Voltage
208-230/460
Frame
145TC
NEMA Nom. Eff.
85 .5
Full Load Amps
3 .1-3/1 .5
Ship Wt. (lbs.)
65
Enclosure
TEFC
Phase
Three
Hz
60
Insulation
Class F
Construction
Cast Iron
Paint
Corrosion Resistant Mill & Chemical Duty
Protection
IP54
Service Factor @ 60 Hz
1.15
Hardware
Zinc Plated
