Century

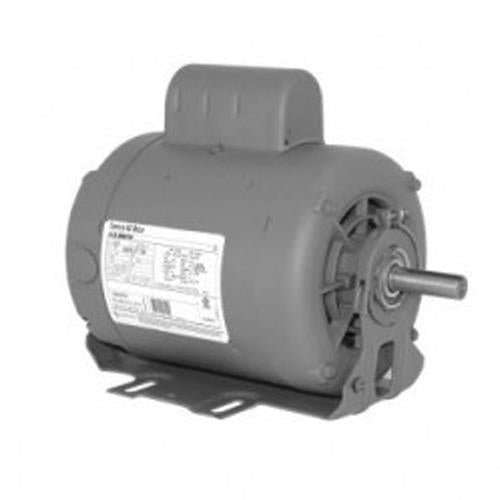

C196L Century Capacitor Start Resilient Base Motor (1/4 HP, 115/230 Volts, 48 Frame, 1725 RPM)
C196L Century Capacitor Start Resilient Base Motor (1/4 HP, 115/230 Volts, 48 Frame, 1725 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:C196L
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
C196L Century Capacitor Start Resilient Base Motor (1/4 HP, 115/230 Volts, 48 Frame, 1725 RPM)
| Applications |
| Compressors, pumps, conveyors, milking machines, blowers, fans |
| Features |
| Class A and B Insulation; 2, 4 and 6 Pole; High Start Torque; 40?C Ambient; Open Construction; 60 Hz; Reversible; Sleeve & Ball Bearing |
Tech Specs. | |
Brand |
A.O. Smith |
Model Number |
C196L |
HP |
1/4 |
RPM |
1725 |
Volts |
115/230 |
Full Load Amps |
4.5/2.6 |
Service Factor |
1.35 |
Bearings |
Ball |
Frame |
48 |
Apx. Wt. (lb) |
30 |
Enclosure |
Open D.P. |
Aprox "C" |
9.3 |
Dim "AG" |
7.8 |
Protector |
Auto |
Type |
Capacitor Start Resilient Base Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
