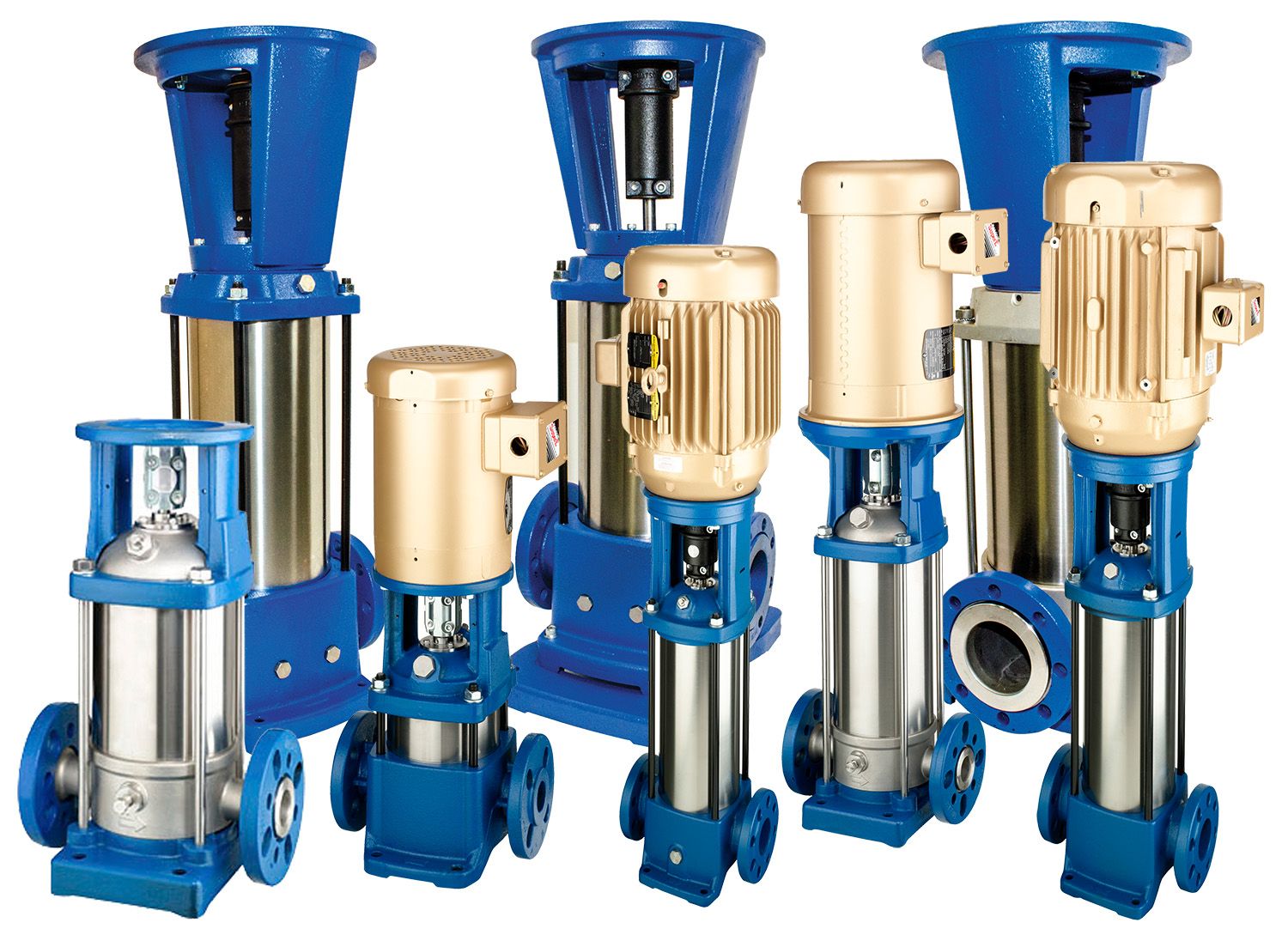

BVM5-7-100 Berkeley Vertical Multi-Stage Centrifugal Pump (1.25" Flange, 30 BEP GPM, Cast Iron, EPDM Mechanical Seals, Wet End Only)
BVM5-7-100 Berkeley Vertical Multi-Stage Centrifugal Pump (1.25" Flange, 30 BEP GPM, Cast Iron, EPDM Mechanical Seals, Wet End Only)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:BVM5-7-100
Regular price
$1,714.30 USD
Regular price
$3,039.00 USD
Sale price
$1,714.30 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
BVM5-7-100 Berkeley Vertical Multi-Stage Centrifugal Pump (1.25" Flange, 30 BEP GPM, Cast Iron, EPDM Mechanical Seals, Wet End Only)
| Pump Type | Multi-Stage Booster Pump |
|---|---|
| Pump Style | Electric Centrifugal Pump |
| Inlet Diameter | 1.25" |
| Outlet Diameter | 1.25" |
| BEP Gallon Per Minute | 30.0 |
| BEP Max Total Head (Static) | 176.0 |
| BEP Max PSI | 76 |
| Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) | 45.0 |
| Max Total Head (Static) | 230 Feet |
| Maximum Pressure (PSI) | 99 |
| Self Priming Pump | No, Flooded Suction Only |
| Pump Housing Drain | Yes |
| Housing Material | Cast Iron |
| Impeller Material | Stainless Steel |
| Impeller Sleeve Material | Stainless Steel |
| Seal Type (Mechanical Or Other) | Cartridge Type |
| Seal Material (Mechanical Or Other) | EPDM |
| Shaft Material | Stainless Steel |
| Temperature Range | 5-250 F |
| Pump Base | Cast Iron |
| Pumps Stages | 7 |
| O-Ring Material | EPDM |
| Port Type(s) | Flange |
| Altitude Affected | Yes |
| Max Casing (Working) Pressure (WET END BURST/FAILURE POINT) | 360 PSI |
