Berkeley Pumps

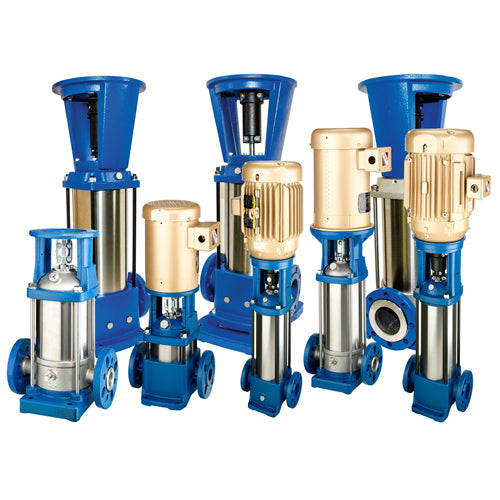

BVM15-8-404 Berkeley Vertical Multi-Stage Pump (15 HP, 8 Stages, TEFC Enclosure, Viton Flange, 3 Phase, 208-230V/460V Voltage, Cast Iron)
BVM15-8-404 Berkeley Vertical Multi-Stage Pump (15 HP, 8 Stages, TEFC Enclosure, Viton Flange, 3 Phase, 208-230V/460V Voltage, Cast Iron)
No reviews
SKU:BVM15-8-404
Regular price
$6,853.00 USD
Regular price
Sale price
$6,853.00 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Berkeley BVM15-8-404, Vertical Multistage Centrifugal Pumps Type, BVM15 Series, 15 HP, 8 Stages, TEFC Enclosure, Viton Flange, 3 Phase, 208-230V/460V Voltage, Cast Iron Material,
| Applications | |
| The Berkeley BVM Series are non-self priming vertical multistage pump of in-line design, with flange, NPT and grooved connections and stainless steel stage construction. Premium efficiency pump motors are available. Pump stub shaft and motor shaft of the NEMA standard motor are directly close coupled. Applications: Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting system, Boiler feed. | |
| Features | |
| Flanged, NPT or grooved connections | |
| Cartridge Mechanical Seal - can be replaced easily without dismantling the pump | |
| Continuous-duty, high-efficiency designs | |
| Heavy-duty cast motor bracket insures proper motor alignment | |
| High-thrust Open Drip or TEFC enclosure motor options | |
| Versatility in performance and design | |
| Retrofits easily in existing and new installations, reducing valuable downtime | |
| Lower operating costs | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
BVM15-8-404 |
Type |
Vertical Multistage Centrifugal Pumps |
Series |
BVM15 |
HP |
15 |
Stages |
8 |
Enclosure |
TEFC |
Flange |
Viton |
Phase |
3 |
Voltage |
208-230V/460V |
Material |
Cast Iron |
S.F |
1.15 |
Hz |
60 |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
