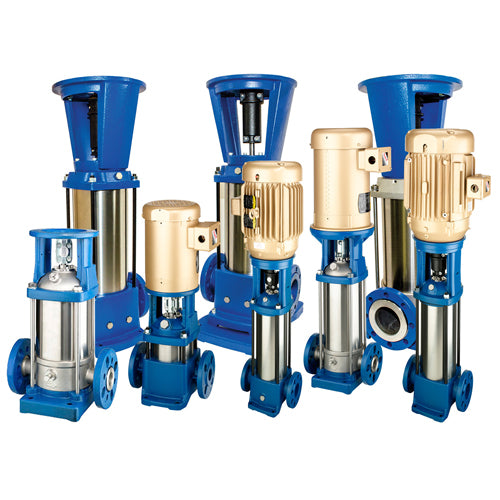

BVM1-21-404 Berkeley Vertical Multistage Pumps (3 HP, 3 Phase, 21 Stages, 208-230V/460V Voltage, Viton Flange, Cast Iron, TEFC Enclosure, )

BVM1-21-404 Berkeley Vertical Multistage Pumps (3 HP, 3 Phase, 21 Stages, 208-230V/460V Voltage, Viton Flange, Cast Iron, TEFC Enclosure, )

👁️ [COUNT] People are currently viewing this product.

BVM1-21-404

$3,651.31 USD
$6,781.00 USD $3,651.31 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley BVM1-21-404, Vertical Multi-Stage Pumps Type, 3 HP, 3 Phase, 21 Stages, 208-230V/460V Voltage, Viton Flange, Cast Iron, TEFC Enclosure,

Applications
Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting systems, Boiler feed
Features
The BVM, BVMI and BVMX are vertical multistage pumps with flanged/NPT or grooved connections.
HIGH HYDRAULIC EFFICIENCY, MOTOR DESIGNED TO NEMA STANDARDS
Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the NEMA-standard motor are directly close coupled.
All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
High-thrust Open Drip or TEFC enclosure motor options
Versatility in performance and design
Retrofits easily in existing and new installations, reducing valuable downtime
Continuous-duty, high-efficiency designs
Non-self-priming/gravity feed, industrial pump with high pressure and low output.

Specifications

Brand
Berkeley
Catalog Number
BVM1-21-404
Type
Vertical Multi-Stage Pumps
Series
BVM1
HP
3
Phase
3
Stages
21
Voltage
208-230V/460V
Flange
Viton
Material
Cast Iron
Enclosure
TEFC
Nominal Flow
10.4 GPM
Flow Range
1-20 GPM
Max Pressure
360 PSI
Flange/NPT
1-1/4"
Notes
See Support Documents Below
