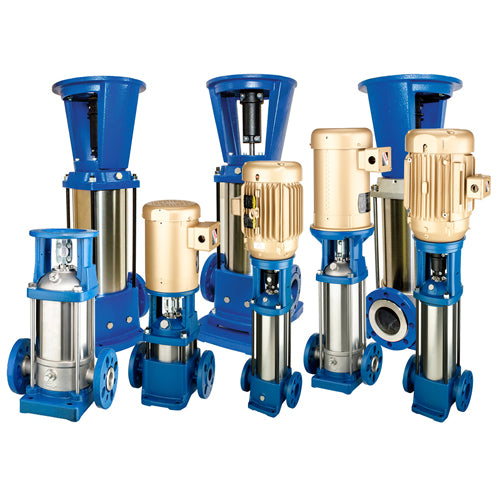

BVM1-19-204 Berkeley Vertical Multistage Pumps (3 HP, 3 Phase, 19 Stages, 208-230V/460V Voltage, EPDM Flange, Cast Iron, TEFC Enclosure, )
BVM1-19-204 Berkeley Vertical Multistage Pumps (3 HP, 3 Phase, 19 Stages, 208-230V/460V Voltage, EPDM Flange, Cast Iron, TEFC Enclosure, )
SKU:BVM1-19-204
Regular price
$3,124.15 USD
Regular price
Sale price
$3,124.15 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Berkeley BVM1-19-204, Vertical Multi-Stage Pumps Type, 3 HP, 3 Phase, 19 Stages, 208-230V/460V Voltage, EPDM Flange, Cast Iron, TEFC Enclosure,
| Applications | |
| Water supply, Pressure boosting systems, Water treatment/filtration, Irrigation, High pressure washes, Liquid transfer, Firefighting systems, Boiler feed | |
| Features | |
| The BVM, BVMI and BVMX are vertical multistage pumps with flanged/NPT or grooved connections. | |
| HIGH HYDRAULIC EFFICIENCY, MOTOR DESIGNED TO NEMA STANDARDS | |
| Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the NEMA-standard motor are directly close coupled. | |
| All pumps are equipped with a cartridge type mechanical seal for easy maintenance. | |
| High-thrust Open Drip or TEFC enclosure motor options | |
| Versatility in performance and design | |
| Retrofits easily in existing and new installations, reducing valuable downtime | |
| Continuous-duty, high-efficiency designs | |
| Non-self-priming/gravity feed, industrial pump with high pressure and low output. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
BVM1-19-204 |
Type |
Vertical Multi-Stage Pumps |
Series |
BVM1 |
HP |
3 |
Phase |
3 |
Stages |
19 |
Voltage |
208-230V/460V |
Flange |
EPDM |
Material |
Cast Iron |
Enclosure |
TEFC |
Nominal Flow |
10.4 GPM |
Flow Range |
1-20 GPM |
Max Pressure |
360 PSI |
Flange/NPT |
1-1/4" |
Notes |
See Support Documents Below |
Support Documents (pdf) | ||||
