Simatec

BHT 300-500 Simatec Simatool Bearing Handling Tool (Model # 310-11100) - 1 Unit

BHT 300-500 Simatec Simatool Bearing Handling Tool (Model # 310-11100) - 1 Unit

SKU:310-11100

Regular price $1,641.35 USD
Regular price $1,707.00 USD Sale price $1,641.35 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

BHT 300-500 Simatec Simatool Bearing Handling Tool (Model # 310-11100)

The safe solution for handling medium, large and very large bearings

The Bearing Handling Tool is ideally suited for professionally and securely lifting large, heavy bearings.

The following three variants are available:

  • BHT 200-400 (max. lifting force 150 kg)
  • BHT 300-500 (max. lifting force 500 kg)
  • BHT 500-700 (max. lifting force 500kg)

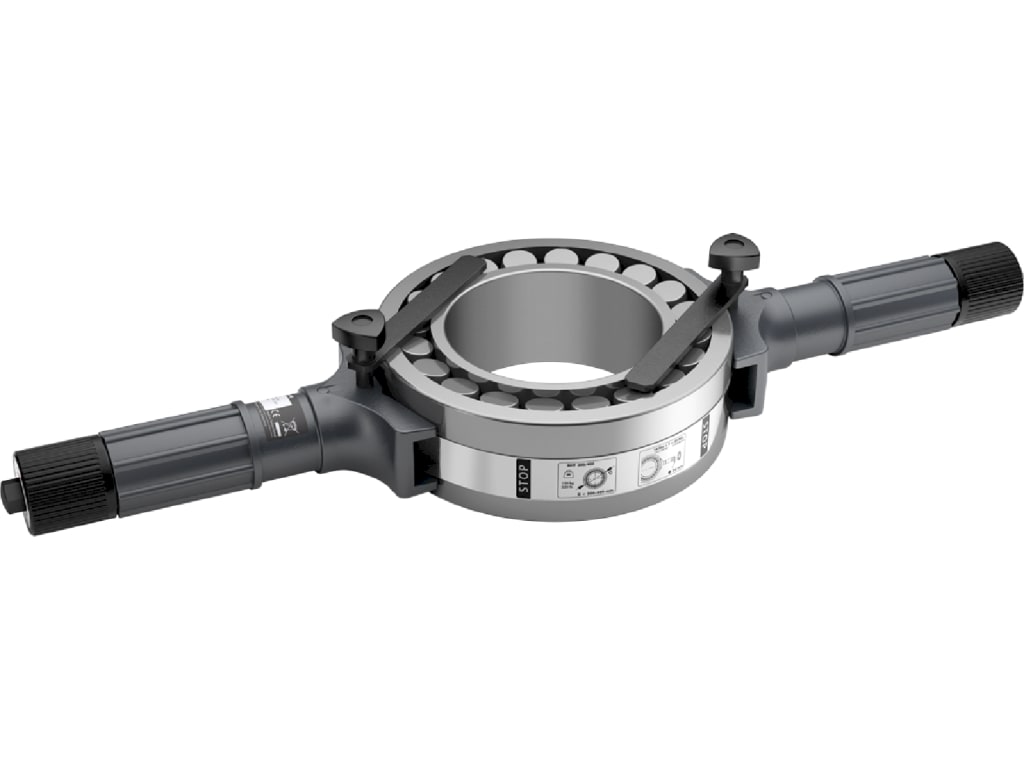

The BHT reduces the risk of accidents and bearing damage. The BHT encloses the outer race of the bearing with a steel band. With two handles on opposite sides and two carrying belts, the bearing can be easily transported with a lifting crane. The bore remains open so the bearings can be easily placed onto a shaft. With the Bearing Handling Tool, bearings can be both horizontally and vertically fitted onto a shaft. Two anti-twist devices, which are fastened against the inner race, ensure that the inner race of the bearing does not turn out of control.

  • Bearing bore remains free for mounting on shaft
  • Mounting on shaft in horizontal and vertical position possible
  • Avoidance of accident risk
  • Can be used in combination with simatherm induction heaters
  • TÜV SÜD certified

Scope of delivery

2 carrying belts
2 high quality handles
1 pair of protective gloves
2 turning handles for safe handling
2 steel clamping strips
2 inner race fasteners

Application areas of the BHT

General manufacture and maintenance in plant and mechanical engineering
Maintenance of agricultural, municipal and construction machinery
Maintenance of electric motors
Maintenance of pumps
Gearbox maintenance
Maintenance of conveyor technology
Maintenance paper and plastics processing
