Berkeley Pumps

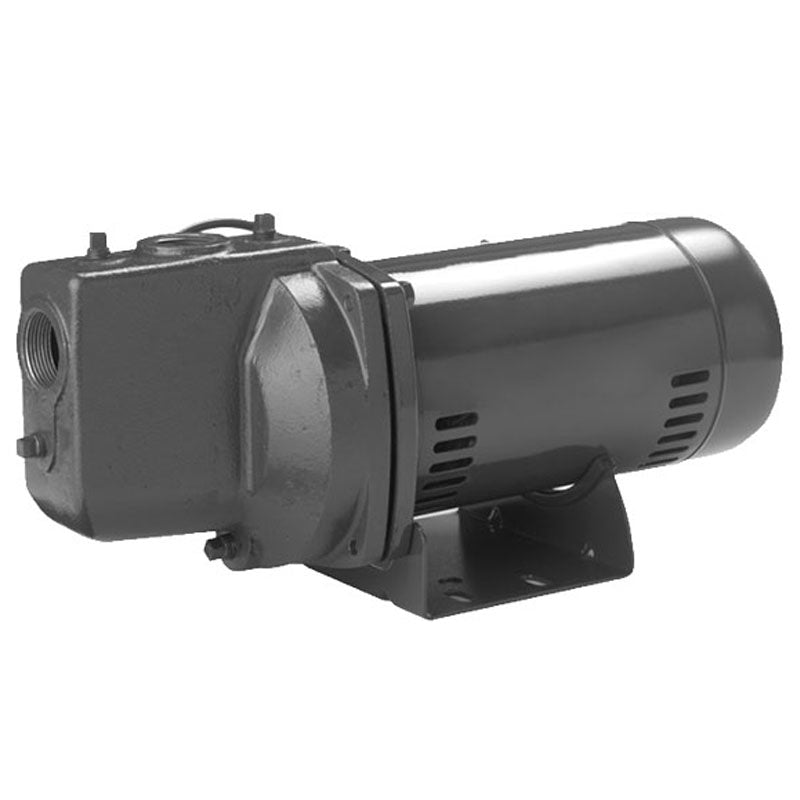

BFH50 Berkeley Shallow Well, Cast Iron Jet Pump (1/2 HP, 115/230 Voltage, 1 Phase, 1" NPT Discharge, 1-1/4" NPT Suction, 23 Max GPM, Cast Iron)
BFH50 Berkeley Shallow Well, Cast Iron Jet Pump (1/2 HP, 115/230 Voltage, 1 Phase, 1" NPT Discharge, 1-1/4" NPT Suction, 23 Max GPM, Cast Iron)
SKU:BFH50
Regular price
$690.82 USD
Regular price
Sale price
$690.82 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
Berkeley BFH50, Shallow Well Jet Pump Type, FH Series, 1/2 HP, 115/230 Voltage, 1 Phase, 1" NPT Discharge, 1-1/4" NPT Suction, 23 Max GPM, Cast Iron Body,
| Applications | |
| The FH Series Jet Pump provides best-in-class performance for shallow wells up to 25 deep and flows over 20 GPM. Designed for the professional with heavy-duty cast iron construction, Noryl internals and factory wired pressure switch for years of extended service. Available in 1/2 HP model. APPLICATIONS: Ideal for homes, farms and cottages. | |
| Features | |
| Precision Molded Noryl Impeller with 300 grade Stainless Insert High performance and efficiency with high strength for longevity. | |
| Precision Molded Reinforced Polypropylene Diffuser, Nozzle and Venturi High performance and efficiency with superior abrasion resistance. | |
| Cast Iron Pump Case with 1-1/4 Suction and 1 Discharge Ports,Two 1/4 Auxiliary Pressure Ports and Cleanout Plug Facilitates plumbing of accessories and easy access to nozzle for cleanout. | |
| Rugged Cast Iron Seal Plate Positive alignment between pump case and motor. | |
| Factory Installed Pressure Switch with Fixed 20 lb. Differential and 1/4 FNPT Port Industry standard switch is easily field replaceable. | |
| Every Pump Unit is Factory Tested Peace of mind for you and your customers. | |
Specifications | |
Brand |
Berkeley |
Catalog Number |
BFH50 |
Type |
Shallow Well Jet Pump |
Series |
FH |
HP |
1/2 |
Voltage |
115/230 |
Phase |
1 |
Discharge |
1" NPT |
Suction |
1-1/4" NPT |
Max GPM |
23 |
Body |
Cast Iron |
Shut-Off Pressure |
52-61 PSI |
Warranty |
1 year limited warranty |
Support Documents (pdf) |
