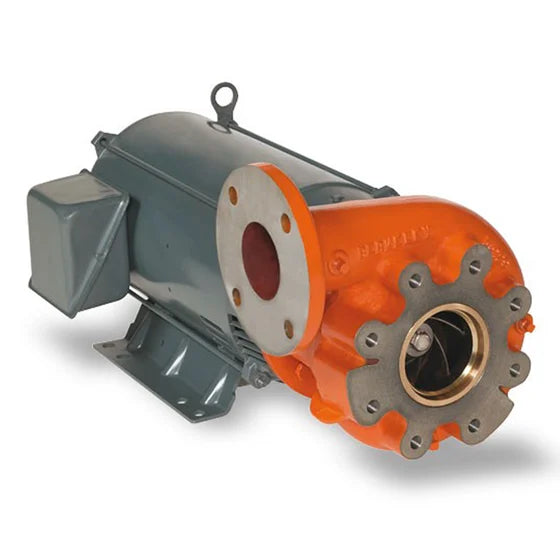

B87313 Berkeley Model B3JPBM, Close-Coupled Centrifugal Pump, B Series (20 HP, 208-230/460 Volts, 3 Phase, 1800 RPM, 3" NPT Discharge, Cast Iron Impeller, Packing Seal)

The Berkeley close-coupled end-suction pumps are ideal for most applications requiring high performance, easy maintenance and moderate initial cost. Its cast iron construction with unique back pull-out design permits access to the impeller without disturbing the piping.

Features

• Type “B” electric motor drive
• Four-position rotatable discharge can be positioned for fast and easy piping
• Premium-grade motors, NEMA, for greater efficiency, reliability and longevity
• Motor bracket is precision-machined. Its closed-grain cast iron construction provides added strength to minimize deflection and ensure a tight component seal
• Maintenance-free shaft seal, self-lubricating and corrosion-resistant, provides maximum abrassion resistance without leaking
• Replaceable slip-on rugged stainless steel shaft sleeve provides maximum corrosion and wear resistance
• Replaceable bronze wear ring is available on some models
• Superior impeller is precision-machined to optimimze performance and operating efficiencies
• Heavy-duty volute case with thick wall and close-grained cast iron construction stands tough in high-demand environment
• Multipe taps for easy priming and draining
• Durable finish features high-quality lead-free/chromate-free primer and paint coatings
