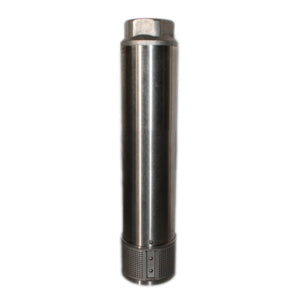

B87289 Berkeley Pumps 6" Submersible Turbine Pump (10 HP, 6 Stages, 3" Discharge, 100 GPM Flow)

B87289 Berkeley Pumps 6" Submersible Turbine Pump (10 HP, 6 Stages, 3" Discharge, 100 GPM Flow)

👁️ [COUNT] People are currently viewing this product.

B87289

$1,817.85 USD
$3,376.00 USD $1,817.85 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley Pumps B87289, 6" Submersible Turbine Pumps Type, 10 HP, 6 Stages, 3" Discharge, 100 GPM Flow,

Applications
The 6TSP series pumps feature abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions. Components are 100% lead-free, and meet all U.S. federal guidelines for safe drinking water.
Features
Discharge - stainless steel investment cast, 3 FNPT Features 6 extra wide wrench flats for a secure grip when tightening to the drop pipe.
Standard Check valve - The poppet-style check valve helps protect the pump against backflow. The check valve can be easily removed if not required.
Shaft and bearing assembly - A ceramic upper bearing guide combined with a cutless rubber bearing protects the shaft from premature wear.
Impellers and diffusers - Noryl - Smooth and efficient performance, and superior sand handling.
Wear rings - 304 Minimizes re-circulation for increased pump performance and longevity.
Pump sleeve - stainless steel - Provides superior corrosion resistance when the pump is installed in harsh environments.
Lead guard - Easy installation, and protects the motor leads across the full length of the pump.
Suction bracket - stainless steel - Machined for both 4 and 6 motor registers. Bolt kits included for either motor size where appropriate.
Suction screen - Form fitted, provides corrosion resistance, and prevents particulates larger than 0.10 from entering the pump.
Motor Coupling - Designed to effectively divert debris away from the spline engagement area to maximize durability.

Specifications

Brand
Berkeley Pumps
Catalog Number
B87289
Type
6" Submersible Turbine Pumps
Series
6TSP
Pump Model
6TSP10-100
HP
10
Stages
6
Discharge
3"
Motor Diameter
4" & 6"
Flow
100 GPM
Approximate Weight (Lbs)
34
Impeller
Noryl
Pump Sleeve
Stainless Steel
Notes
See Support Documents
