Berkeley Pumps

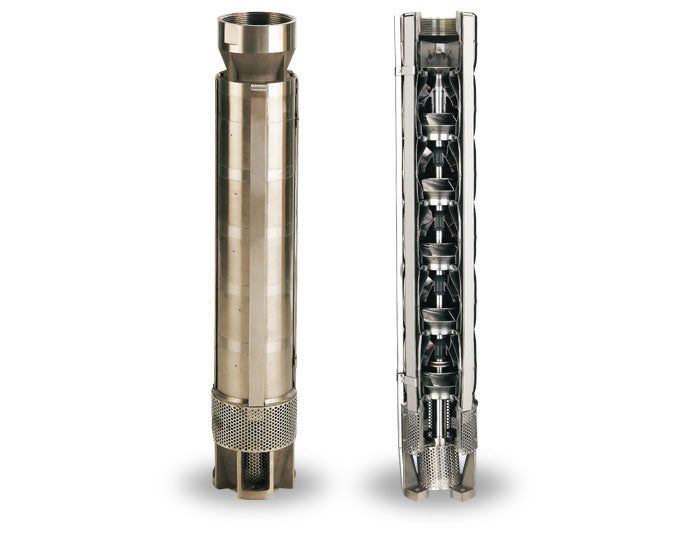

B86050 Berkeley 6" Submersible Pump - End Only (6TS20-300, 300 GPM, 20 HP, 5 Stages, Pump - End Only w/ CV)

B86050 Berkeley 6" Submersible Pump - End Only (6TS20-300, 300 GPM, 20 HP, 5 Stages, Pump - End Only w/ CV)

[COUNT] shoppers are looking at this right now

B86050

$3,694.96 USD
$6,299.00 USD $3,694.96 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart
Berkeley B86050, 6TS20-300, 6" Submersible Pump w/ CV, 300 GPM, 20 HP, 5 Stage(s), 4 Discharge (Female),
Applications
BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions.
Features
Cast 304 Stainless Steel Discharge
Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions
Self-Aligning Teflon Wear Rings improve pump efficiency and durability
Low-Profile Stainless Steel Lead Guard aids installation in narrow wells
Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure
304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas

Specifications

Brand
Berkeley
Model Number
B86050
Pump Model
6TS20-300
Type
6" Submersible Pump w/ CV
Liquid End Only
Pump End Only (Motor Not Included)
Series
6TS Stainless Steel Subturbine Series
Flow Range
300 GPM
HP
20
Stage(s)
5
Discharge (Female)
4
Motor Diameter
6
Motor
Not Included - See Motor Category
Check Valve
Included
Weight (lbs.)
60
Notes & Pump Curve
Please See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
