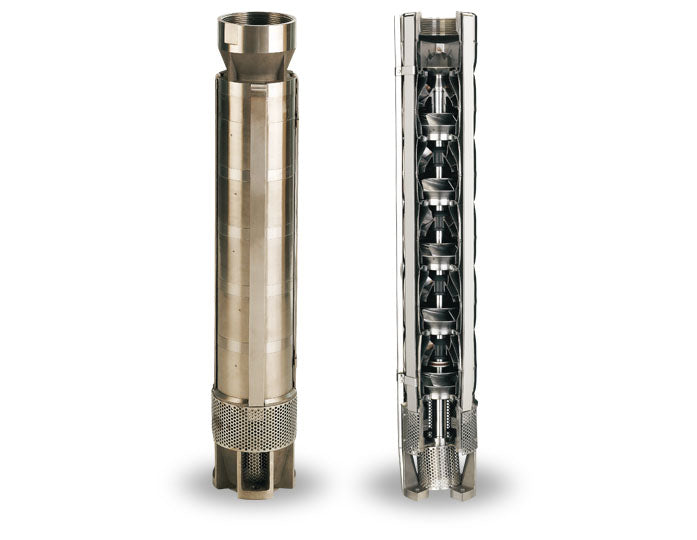

B86048 Berkeley 6" Submersible Pump - End Only (6TS10-300, 300 GPM, 10 HP, 2 Stages, Pump - End Only w/ CV)

B86048 Berkeley 6" Submersible Pump - End Only (6TS10-300, 300 GPM, 10 HP, 2 Stages, Pump - End Only w/ CV)

B86048

$1,561.50 USD
$3,470.00 USD $1,561.50 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Berkeley B86048, 6TS10-300, 6" Submersible Pump w/ CV, 300 GPM, 10 HP, 2 Stage(s), 4 Discharge (Female),

Applications
BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions.
Features
Cast 304 Stainless Steel Discharge
Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions
Self-Aligning Teflon Wear Rings improve pump efficiency and durability
Low-Profile Stainless Steel Lead Guard aids installation in narrow wells
Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure
304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas

Specifications

Brand
Berkeley
Model Number
B86048
Pump Model
6TS10-300
Type
6" Submersible Pump w/ CV
Liquid End Only
Pump End Only (Motor Not Included)
Series
6TS Stainless Steel Subturbine Series
Flow Range
300 GPM
HP
10
Stage(s)
2
Discharge (Female)
4
Motor Diameter
6
Motor
Not Included - See Motor Category
Check Valve
Included
Weight (lbs.)
44
Notes & Pump Curve
Please See Support Documents

Support Documents (pdf)
