Berkeley Pumps

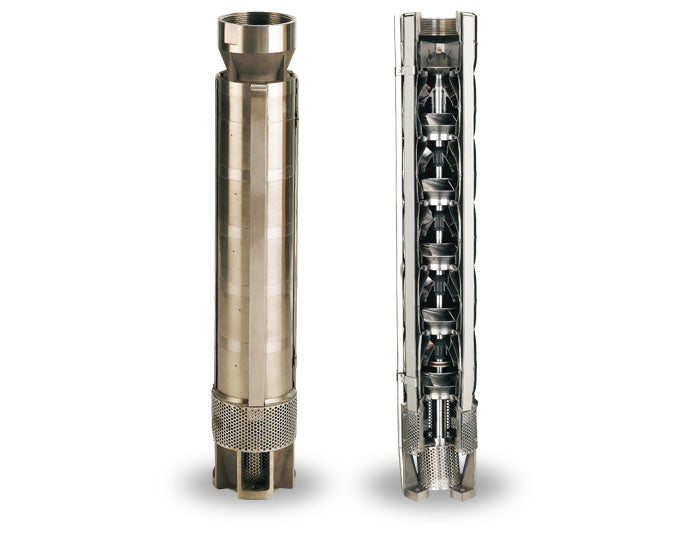

B86029 Berkeley 6" Submersible Pump - End Only (6TS3-230, 230 GPM, 3 HP, 1 Stages, Pump - End Only W/O CV)

B86029 Berkeley 6" Submersible Pump - End Only (6TS3-230, 230 GPM, 3 HP, 1 Stages, Pump - End Only W/O CV)

👁️ [COUNT] People are currently viewing this product.

B86029

$1,530.14 USD
$2,713.00 USD $1,530.14 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley B86029, 6TS3-230, 6" Submersible Pump w/o CV, 230 GPM, 3 HP, 1 Stage(s), 4 Discharge (Female),
Applications
BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions.
Features
Cast 304 Stainless Steel Discharge
Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions
Self-Aligning Teflon Wear Rings improve pump efficiency and durability
Low-Profile Stainless Steel Lead Guard aids installation in narrow wells
Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure
304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas

Specifications

Brand
Berkeley
Model Number
B86029
Pump Model
6TS3-230
Type
6" Submersible Pump w/o CV
Liquid End Only
Pump End Only (Motor Not Included)
Series
6TS Stainless Steel Subturbine Series
Flow Range
230 GPM
HP
3
Stage(s)
1
Discharge (Female)
4
Motor Diameter
4
Motor
Not Included - See Motor Category
Check Valve
Not Included
Weight (lbs.)
40
Notes & Pump Curve
Please See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
