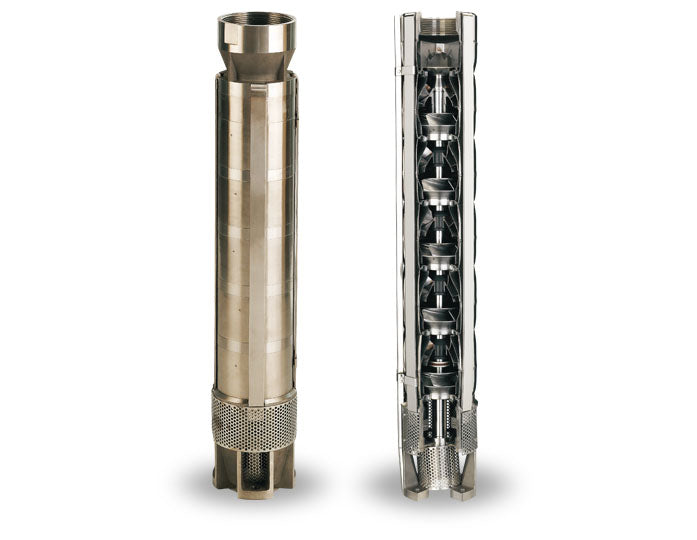

B86026 Berkeley 6" Submersible Pump - End Only (6TS40-230, 230 GPM, 40 HP, 14 Stages, Pump - End Only w/ CV)
B86026 Berkeley 6" Submersible Pump - End Only (6TS40-230, 230 GPM, 40 HP, 14 Stages, Pump - End Only w/ CV)
SKU:B86026
Regular price
$5,525.08 USD
Regular price
Sale price
$5,525.08 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Berkeley B86026, 6TS40-230, 6" Submersible Pump w/ CV, 230 GPM, 40 HP, 14 Stage(s), 4 Discharge (Female),
Applications | |
BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions. | |
Features | |
Cast 304 Stainless Steel Discharge | |
Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions | |
Self-Aligning Teflon Wear Rings improve pump efficiency and durability | |
Low-Profile Stainless Steel Lead Guard aids installation in narrow wells | |
Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure | |
304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas |
Specifications | |
Brand |
Berkeley |
Model Number |
B86026 |
Pump Model |
6TS40-230 |
Type |
6" Submersible Pump w/ CV |
Liquid End Only |
Pump End Only (Motor Not Included) |
Series |
6TS Stainless Steel Subturbine Series |
Flow Range |
230 GPM |
HP |
40 |
Stage(s) |
14 |
Discharge (Female) |
4 |
Motor Diameter |
6 |
Motor |
Not Included - See Motor Category |
Check Valve |
Included |
Weight (lbs.) |
103 |
Notes & Pump Curve |
Please See Support Documents |
Support Documents (pdf) | ||||
