Berkeley Pumps

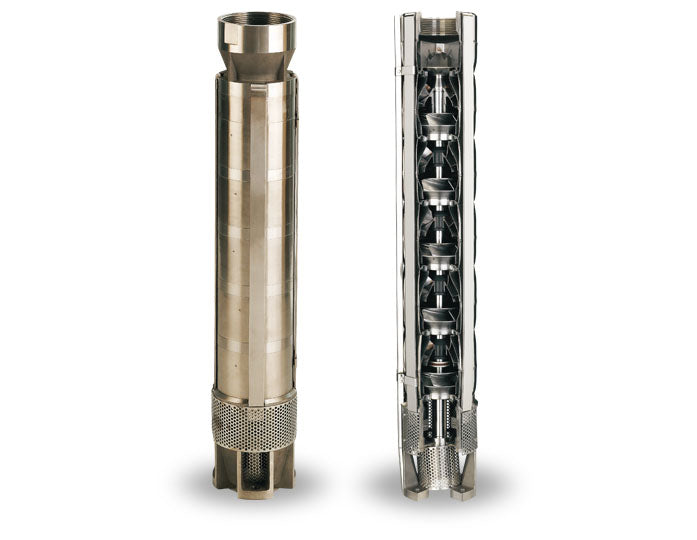

B86008 Berkeley 6" Submersible Pump - End Only (6TS15-155, 155 GPM, 15 HP, 6 Stages, Pump - End Only W/O CV)

B86008 Berkeley 6" Submersible Pump - End Only (6TS15-155, 155 GPM, 15 HP, 6 Stages, Pump - End Only W/O CV)

B86008

$2,676.46 USD
$2,676.46 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B86008, 6TS15-155, 6" Submersible Pump w/o CV, 155 GPM, 15 HP, 6 Stage(s), 3 Discharge (Female),

Applications
BERKELEY 6TS Series Pumps feature heavy-duty 304 stainless steel construction and hard chrome wear surfaces that will outperform ordinary fabricated stainless steel pumps in aggressive water conditions.
Features
Cast 304 Stainless Steel Discharge
Hard Chrome-Plated Top Bearing Journal reduces abrasive wear in harsh sandy well conditions
Self-Aligning Teflon Wear Rings improve pump efficiency and durability
Low-Profile Stainless Steel Lead Guard aids installation in narrow wells
Built-In Up-Thrust Protection protects pump during periods of high demand and start-up preventing pump failure
304 Stainless Steel Inlet Screen and Internal Coupling Screen prevents entry of abrasives into pump and coupling areas

Specifications

Brand
Berkeley
Model Number
B86008
Pump Model
6TS15-155
Type
6" Submersible Pump w/o CV
Liquid End Only
Pump End Only (Motor Not Included)
Series
6TS Stainless Steel Subturbine Series
Flow Range
155 GPM
HP
15
Stage(s)
6
Discharge (Female)
3
Motor Diameter
6
Motor
Not Included - See Motor Category
Check Valve
Not Included
Weight (lbs.)
51
Notes & Pump Curve
Please See Support Documents

Support Documents (pdf)
