Berkeley Pumps

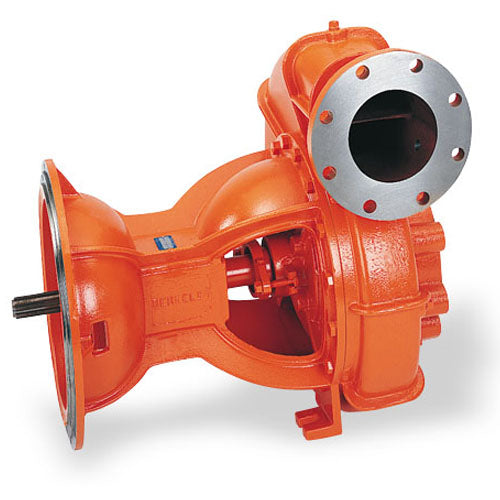

B85800 Berkeley Centrifugal Pump, SAE Engine Mount (B10JQBH, SAE Engine Mount, 10" Discharge, 12" Suction, Packing Shaft Seal)

Name: B85800 Berkeley Centrifugal Pump, SAE Engine Mount (B10JQBH, SAE Engine Mount, 10" Discharge, 12" Suction, Packing Shaft Seal)
Brand: Berkeley Pumps
SKU: B85800
Price: 16442.28 USD
Availability: InStock

SKU:B85800

$16,442.28 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B85800, B10JQBH (10X12X13 PBH), Type "B" SAE Mount - For Flywheel Housings, 3 SAE, 2/3 SAE HSG Size, Packing Seal,

Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.

Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications
Brand	Berkeley
Catalog Number	B85800
?Model Number (Size)	B10JQBH (10X12X13 PBH)
Type	Type "B" SAE Mount - For Flywheel Housings
Series	High Flow/Efficiency Centrifugal Pumps
Shaft Spline Size	210T
Mount	SAE Engine Mount
Shaft Ext.	3
SAE HSG Size	2/3
Discharge Size In.	10"
Suction Size In.	12"
Impeller Diameter In.	13"
Shaft Seal	Packing
Impeller Material	Cast Iron
Volute Connection	Flanged
Motor	Not Included
Weight (Lbs.)	1200
Warranty	1 Year
Notes	See Support Documents
