Berkeley Pumps

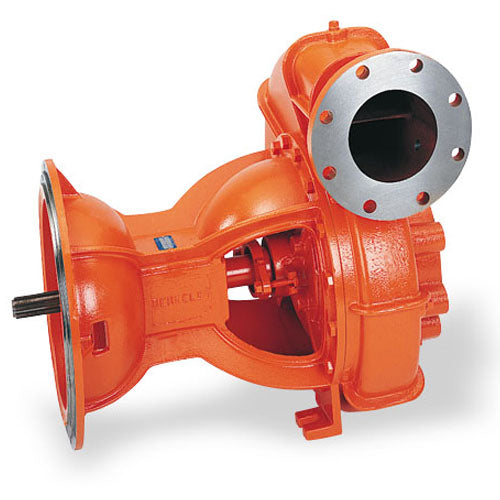

B85724 Berkeley Centrifugal Pump, SAE Engine Mount (B6ZQBHHS, SAE Engine Mount, 6" Discharge, 8" Suction, Mechanical Shaft Seal)

Name: B85724 Berkeley Centrifugal Pump, SAE Engine Mount (B6ZQBHHS, SAE Engine Mount, 6" Discharge, 8" Suction, Mechanical Shaft Seal)
Brand: Berkeley Pumps
SKU: B85724
Price: 6752.31 USD
Availability: InStock

SKU:B85724

$6,752.31 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B85724, B6ZQBHHS (6X8X9 PBHH), Type "B" SAE Mount - For Flywheel Housings, 3 SAE, 3/4 SAE HSG Size, Mechanical Seal,

Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.

Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications
Brand	Berkeley
Catalog Number	B85724
?Model Number (Size)	B6ZQBHHS (6X8X9 PBHH)
Type	Type "B" SAE Mount - For Flywheel Housings
Series	High Flow/Efficiency Centrifugal Pumps
Shaft Spline Size	1.510T
Mount	SAE Engine Mount
Shaft Ext.	3
SAE HSG Size	3/4
Discharge Size In.	6"
Suction Size In.	8"
Impeller Diameter In.	9"
Shaft Seal	Mechanical
Impeller Material	Cast Iron
Volute Connection	Flanged
Motor	Not Included
Weight (Lbs.)	405
Warranty	1 Year
Notes	See Support Documents
