Berkeley Pumps

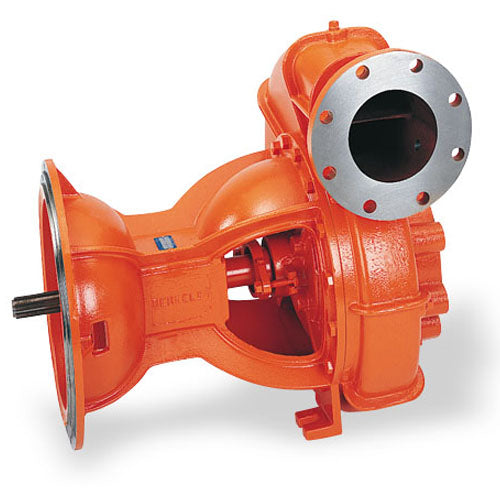

B85721 Berkeley Centrifugal Pump, SAE Engine Mount (B5ZQBH Model, SAE Engine Mount, 5" Discharge, 6" Suction, Packing Shaft Seal)

B85721 Berkeley Centrifugal Pump, SAE Engine Mount (B5ZQBH Model, SAE Engine Mount, 5" Discharge, 6" Suction, Packing Shaft Seal)

[COUNT] shoppers are looking at this right now

B85721

$7,243.60 USD
$12,935.00 USD $7,243.60 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Berkeley B85721, B5ZQBH (5X6X9 BH), Type "B" SAE Mount - For Flywheel Housings, (3) 2.81 (4) 2.63 SAE, 3/4 SAE HSG Size, Packing Seal,
Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.
Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications

Brand
Berkeley
Catalog Number
B85721
?Model Number (Size)
B5ZQBH (5X6X9 BH)
Type
Type "B" SAE Mount - For Flywheel Housings
Series
High Flow/Efficiency Centrifugal Pumps
Shaft Spline Size
1-1/210T
Mount
SAE Engine Mount
Shaft Ext.
(3) 2.81 (4) 2.63
SAE HSG Size
3/4
Discharge Size In.
5"
Suction Size In.
6"
Impeller Diameter In.
9"
Shaft Seal
Packing
Impeller Material
Cast Iron
Volute Connection
Flanged
Motor
Not Included
Weight (Lbs.)
350
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
