Berkeley Pumps

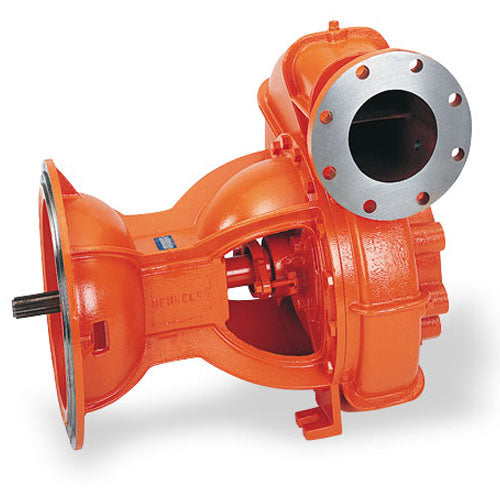

B85720 Berkeley Centrifugal Pump, SAE Engine Mount (B4ZQBHS Model, SAE Engine Mount, 4" Discharge, 5" Suction, Mechanical Shaft Seal)

B85720 Berkeley Centrifugal Pump, SAE Engine Mount (B4ZQBHS Model, SAE Engine Mount, 4" Discharge, 5" Suction, Mechanical Shaft Seal)

SKU:B85720

Regular price $5,742.69 USD
Regular price Sale price $5,742.69 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B85720, B4ZQBHS (4X5X9 BH), Type "B" SAE Mount - For Flywheel Housings, (3) 2.81 (4) 2.63 SAE, 3/4 SAE HSG Size, Mechanical Seal,
Applications
The new standard in full-performance reliability...BERKELEY S.A.E. End Suction Pumps are suitable for any application requiring the convenience of an internal combustion engine as a power source. State-of-the-art design delivers 20,000 hours of bearing life, one of the industry's longest life cycles.
Features
Cast Iron or Silicon Bronze Impellers are available in either packed or mechanical seal configurations. Replaceable stainless steel shaft sleeve is standard, providing maximum corrosion resistance while minimizing shaft wear.
Volute case - Back pull-out design allows easy removal and repair without disturbing piping connections, and completely exposes the impeller for flushing or service.
Heavy-Duty Power Frame is designed for durability delivering in excess of 20,000 hours of bearing life. Includes large shaft and grease-for-life sealed bearings to handle the toughest conditions with less maintenance and more reliability.
Dry-Run Seal option available

Specifications

Brand
Berkeley
Catalog Number
B85720
?Model Number (Size)
B4ZQBHS (4X5X9 BH)
Type
Type "B" SAE Mount - For Flywheel Housings
Series
High Flow/Efficiency Centrifugal Pumps
Shaft Spline Size
1-1/210T
Mount
SAE Engine Mount
Shaft Ext.
(3) 2.81 (4) 2.63
SAE HSG Size
3/4
Discharge Size In.
4"
Suction Size In.
5"
Impeller Diameter In.
9"
Shaft Seal
Mechanical
Impeller Material
Cast Iron
Volute Connection
Flanged
Motor
Not Included
Weight (Lbs.)
300
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
View full details
