Berkeley Pumps

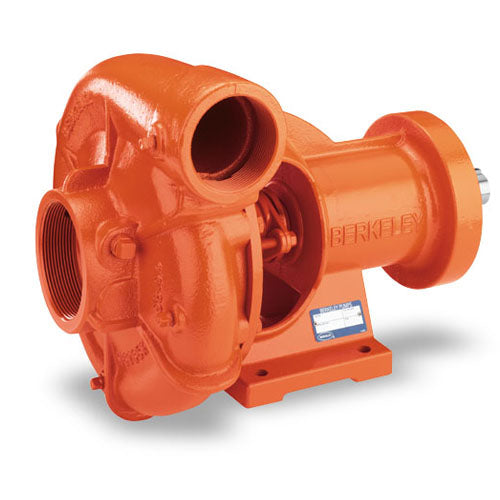

B85717 Berkeley Centrifugal Pump, Frame Mount (B6ZRBHH (6X8X9 PBHH), CW, Packing Seal, Cast Iron Impeller)

Name: B85717 Berkeley Centrifugal Pump, Frame Mount (B6ZRBHH (6X8X9 PBHH), CW, Packing Seal, Cast Iron Impeller)
Brand: Berkeley Pumps
SKU: B85717
Price: 6327.28 USD
Availability: InStock

SKU:B85717

$6,327.28 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B85717, B6ZRBHH (6X8X9 PBHH), Type B Frame Mount, CW, Packing Seal, Cast Iron Impeller, Flanged Volute Connection,

Applications
BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance.

Features
Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency
Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Eveeryday Use
Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections
Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies
Discharge May Be Rotated To Any of Four Positions for Piping Convenience

Specifications
Brand	Berkeley
Catalog Number	B85717
Model Number (Size)	B6ZRBHH (6X8X9 PBHH)
Type	Type B Frame Mount
Series	High Flow/Efficiency Centrifugal Pump
Mount	Frame Mount
Rotation	CW
Discharge Size In.	6"
Suction Size In.	8"
Impeller Diameter In.	9"
Shaft Seal	Packing
Impeller Material	Cast Iron
Volute Connection	Flanged
Motor	Not Included
Weight (Lbs.)	405
Warranty	1 Year
Notes	See Support Documents
