Berkeley Pumps

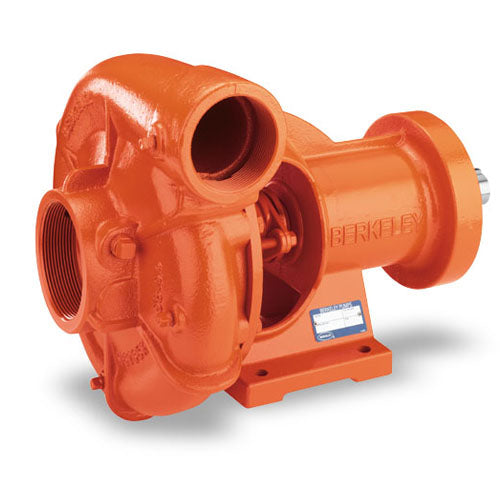

B85713 Berkeley Centrifugal Pump, Frame Mount (B4ZRBH (4X5X9 BH), CW, Packing Seal, Cast Iron Impeller)

B85713 Berkeley Centrifugal Pump, Frame Mount (B4ZRBH (4X5X9 BH), CW, Packing Seal, Cast Iron Impeller)

SKU:B85713

Regular price $3,613.42 USD
Regular price Sale price $3,613.42 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B85713, B4ZRBH (4X5X9 BH), Type B Frame Mount, CW, Packing Seal, Cast Iron Impeller, Flanged Volute Connection,
Applications
BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance.
Features
Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency
Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Eveeryday Use
Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections
Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies
Discharge May Be Rotated To Any of Four Positions for Piping Convenience

Specifications

Brand
Berkeley
Catalog Number
B85713
?Model Number (Size)
B4ZRBH (4X5X9 BH)
Type
Type B Frame Mount
Series
High Flow/Efficiency Centrifugal Pump
Mount
Frame Mount
Rotation
CW
Discharge Size In.
4"
Suction Size In.
5"
Impeller Diameter In.
9"
Shaft Seal
Packing
Impeller Material
Cast Iron
Volute Connection
Flanged
Motor
Not Included
Weight (Lbs.)
300
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
View full details
