Berkeley Pumps

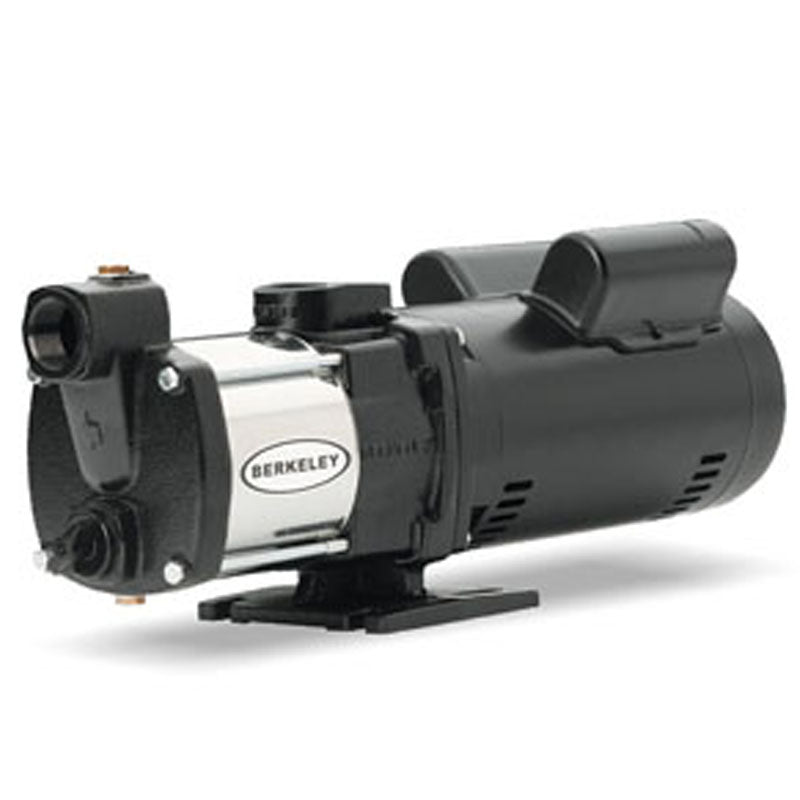

B82456-01 Berkeley Self-Priming Multi-Stage Pumps (2 HP, 1-1/4" NPT Discharge, 230 Voltage, 304 stainless steel, SSHM Series)

B82456-01 Berkeley Self-Priming Multi-Stage Pumps (2 HP, 1-1/4" NPT Discharge, 230 Voltage, 304 stainless steel, SSHM Series)

[COUNT] shoppers are looking at this right now

B82456-01

$1,748.51 USD
$3,451.00 USD $1,748.51 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart

Berkeley B82456-01, Self-Priming Multi-Stage Pump Type, SSHM Series, 2 HP, 1-1/4" NPT Discharge, 230 Voltage, 20 PSI Maximum Inlet Pressure, 304 stainless steel Body,

Applications
The BERKELEY SSHM-2 Self-Priming Pump is the first to deliver high-pressure performance without priming problems and delays. Designed for minimal electrical consumption and quiet operation, the SSHM-2 takes less time and trouble to produce the water volume and high-pressure needed to meet demanding applications such as: Irrigation Systems, Water Supply Systems, Shower & Washing Systems, Dewatering, Heating & Air Conditioning Systems, Fountains.
Features
Self-Priming Design Once initially primed, the SSHM-2 will automatically re-prime cycle after cycle
Cast Iron Motor Bracket & Integral Pedestal for rigid pipe connections and base mounting
Suction Flange is made of heavy-duty cast iron
Precision Molded Extra-Smooth Ports to maximize efficiency and performance
Special Brass Priming Valve, proven to provide trouble-free operation during the priming cycle
AO Smith Motor suitable for continuous duty operation

Specifications

Brand
Berkeley
Catalog Number
B82456-01
Type
Self-Priming Multi-Stage Pump
Series
SSHM
HP
2
Suction
1-1/2" NPT
Discharge
1-1/4" NPT
Voltage
230
Maximum Inlet Pressure
20 PSI
Maximum Discharge Pressure
155 PSI
Maximum Suction Lift
15 feet
Number of Stages
3 or 4
RPM
3450
Body
304 stainless steel
Shaft
303 stainless steel



Support Documents (pdf)
