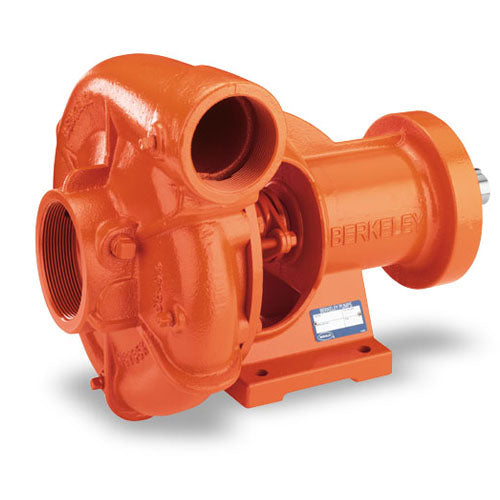

B80367D Berkeley Centrifugal Frame Mount (6 Discharge In.,8 Suction In.,Dry-Run Shaft Seal,Cast Iron Impeller Material)

Name: B80367D Berkeley Centrifugal Frame Mount (6 Discharge In.,8 Suction In.,Dry-Run Shaft Seal,Cast Iron Impeller Material)
Brand: Berkeley Pumps
SKU: B80367D
Price: 10124.40 USD
Availability: InStock

SKU:B80367D

$10,124.40 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley B80367D,Type "B" Frame Mount,6 Discharge In.,8 Suction In.,13 Impeller In.,Dry-Run Shaft Seal

Applications
BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance.

Features
Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency
Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Eveeryday Use
Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections
Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies
Discharge May Be Rotated To Any of Four Positions for Piping Convenience

Specifications
Brand	Berkeley
Catalog Number	B80367D
Model Number (Size)	B6JRMBMS (6 x 8 x 13 BM)
Type	Centrifugal Pump, Frame Mount
Series	Type "B" Frame Mount
Discharge In.	6
Suction In.	8
Impeller In.	13
Drive Type	-
Rotation	CW
Shaft Seal	Dry-Run
Impeller Material	Cast Iron
Volute Connection	FLANGED
Weight (Lbs.)	390
Warranty	1 Year
Notes	See Support Documents
