Berkeley Pumps

B68412 Berkeley Centrifugal Frame Mount (2-1/2 Discharge In.,3 Suction In.,Mechanical Shaft Seal,Cast Iron Impeller Material)

B68412 Berkeley Centrifugal Frame Mount (2-1/2 Discharge In.,3 Suction In.,Mechanical Shaft Seal,Cast Iron Impeller Material)

B68412

$2,851.13 USD
$5,054.00 USD $2,851.13 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

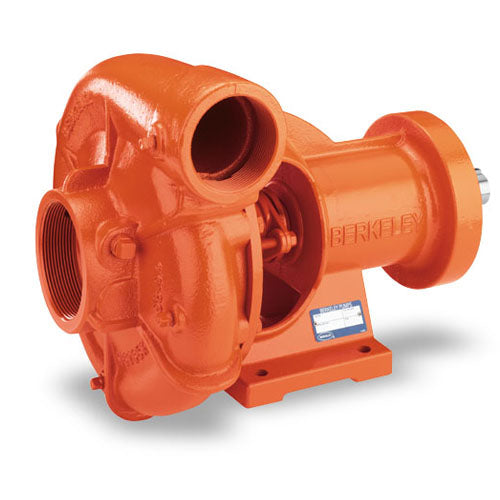

Berkeley B68412,Type "B" Frame Mount,2-1/2 Discharge In.,3 Suction In.,9 Impeller In.,Mechanical Shaft Seal
Applications
BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance.
Features
Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency
Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Eveeryday Use
Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections
Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies
Discharge May Be Rotated To Any of Four Positions for Piping Convenience

Specifications

Brand
Berkeley
Catalog Number
B68412
Model Number (Size)
B2-1/2ZRLS (2-1/2 x 3 x 9 L)
Type
Centrifugal Pump, Frame Mount
Series
Type "B" Frame Mount
Discharge In.
2-1/2
Suction In.
3
Impeller In.
9
Drive Type
-
Rotation
CW
Shaft Seal
Mechanical
Impeller Material
Cast Iron
Volute Connection
NPT
Weight (Lbs.)
100
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)

View full details
