• B56775 Berkeley Centrifugal Frame Mount (B6JRMBM, 6 Discharge In.,8 Suction In.,Packing Shaft Seal,Cast Iron Impeller Material) - KG Power Systems
1 1

Berkeley Pumps

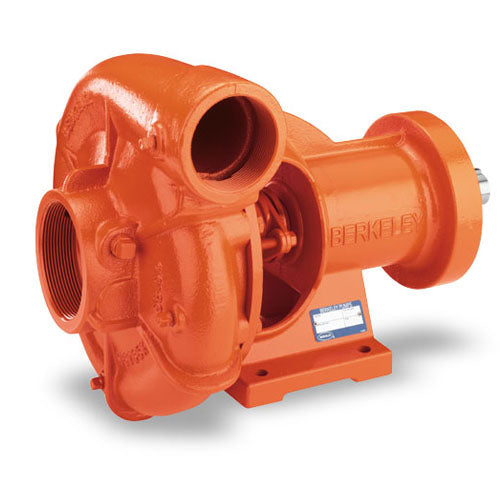

B56775 Berkeley Centrifugal Frame Mount (B6JRMBM, 6 Discharge In.,8 Suction In.,Packing Shaft Seal,Cast Iron Impeller Material)

B56775 Berkeley Centrifugal Frame Mount (B6JRMBM, 6 Discharge In.,8 Suction In.,Packing Shaft Seal,Cast Iron Impeller Material)

[COUNT] shoppers are looking at this right now

B56775

$8,970.69 USD
$17,192.00 USD $8,970.69 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart

Berkeley B56775,Type "B" Frame Mount,6 Discharge In.,8 Suction In.,13 Impeller In.,Packing Shaft Seal

Applications
BERKELEY Type B frame-mount centrifugal pumps are designed for the user who has a separate power source suitable for driving through couplings or with belts. Ideal for all general purpose applications requiring high performance, moderate initial cost and easy maintenance.
Features
Volute Case Incorporates Precise Geometric Design for Increased Hydraulic Efficiency
Thick-Walled Close-Grained Cast Iron to Handle the Stresses of Eveeryday Use
Back Pull-Out Design Allows Easy Removal And Service Without Disturbing Piping Connections
Enclosed Impeller Designed and Machined to Optimize Performance and Operating Efficiencies
Discharge May Be Rotated To Any of Four Positions for Piping Convenience

Specifications

Brand
Berkeley
Catalog Number
B56775
Model Number (Size)
B6JRMBM (6 x 8 x 13 BM)
Type
Centrifugal Pump, Frame Mount
Series
Type "B" Frame Mount
Discharge In.
6
Suction In.
8
Impeller In.
13
Drive Type
-
Rotation
CCW
Shaft Seal
Packing
Impeller Material
Cast Iron
Volute Connection
FLANGED
Weight (Lbs.)
390
Warranty
1 Year
Notes
See Support Documents



Support Documents (pdf)









  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
View full details
