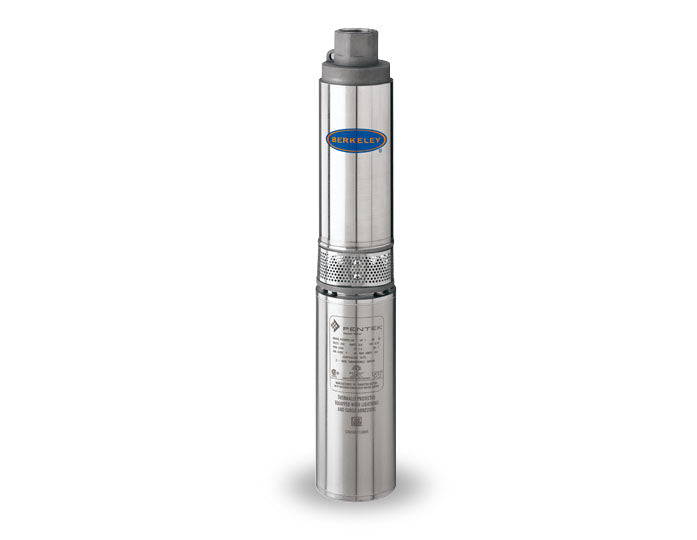

B30P4MS10231-01 Berkeley 4" Submersible Pump Package (30 GPM, 1 HP, 5 STAGES, 1 PH, 230 V)
B30P4MS10231-01 Berkeley 4" Submersible Pump Package (30 GPM, 1 HP, 5 STAGES, 1 PH, 230 V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:B30P4MS10231-01
Regular price
$934.67 USD
Regular price
$2,804.00 USD
Sale price
$934.67 USD
Shipping calculated at checkout.
Quantity
View price in cart
Couldn't load pickup availability
Berkeley B30P4MS10231, 4" Submersible Pump, 30 GPM, 1 HP, 5 STAGES, 1 PH, 230 V, 3 Wires,
| Applications | |
| Precision-engineered, high-quality, rugged MGS Stainless Steel Series Pumps deliver efficient, dependable performance even in rough, aggressive water. | |
| Features | |
| Proven SignaSeal Staging System Incorporates A Harder-Than-Sand Ceramic Wear Surface That When Incorporated With Our Floating Impeller Design, Greatly Reduces Problems With Abrasives, Sand Lock-Up and Running Dry | |
| 300 Grade Stainless Steel Discharge is Corrosion-Resistant for Durability in Aggressive Water. | |
| Exclusive Self-Lubricating NYLATRON Discharge Bearing Resists Wear From Sand | |
| Corrosion-Resistant 300 Grade Stainless Steel Intake for Durability in Aggressive Water | |
| Positive Drive Shaft Made From 7/16" Hexagonal Heavy-Duty 300 Grade Stainless Steel | |
| Stainless Steel Coupling Press Fit to Pump Shaft. Couples To All Standard NEMA Motors | |
| Highest Grade Shell Made of Heavy-Walled Corrosion-Resistant Stainless Steel, Threaded for Easy Servicing | |
| Durable, Internal, Spring-Loaded Check Valve | |
| Corrosion-Resistat Stainless Steel Cable Guard Protects Motor Leads. Tapered Ends Prevent Pump From Catching On Well | |
| PENTEK XE Motor is NEMA Standard All Stainless Construction, Water Filled | |
|
Specifications |
|
|
Brand
|
Berkeley
|
|
Model Number
|
B30P4MS10231
|
|
Type
|
4" Submersible Pump
|
|
Series
|
MGS Series Stainless Steel
|
|
Package Contents
|
Pump & Motor
|
|
GPM Series
|
30
|
|
HP
|
1
|
|
STAGES
|
5
|
|
PH
|
1
|
|
VOLTS
|
230
|
|
# of Wires
|
3
|
|
Weight lbs.
|
37
|
|
Control
|
Not Included
|
|
Optional Control
|
SMC-IR1021
|
|
Warranty
|
1 Year Warranty
|
|
Notes & Pump Curve
|
See Support Documents
|
|
