Berkeley Pumps

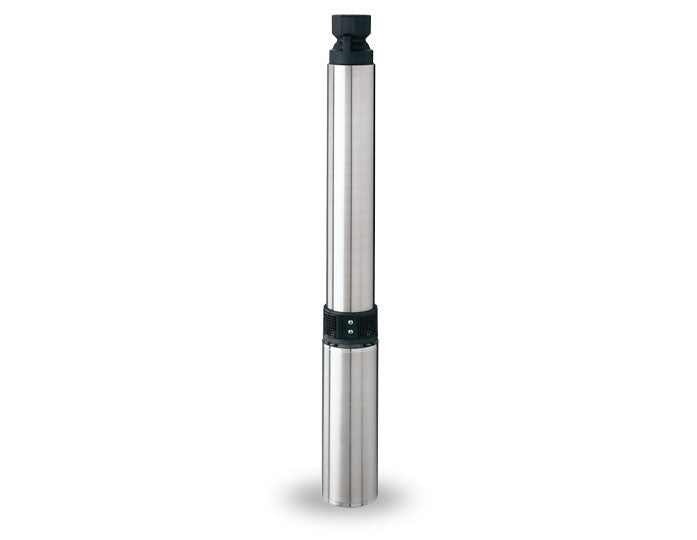

B15P4JP15221-02 Berkeley 4" Submersible Pump Package (15 GPM, 1-1/2 HP, 12 STAGES, 1 PH, 230 V)

B15P4JP15221-02 Berkeley 4" Submersible Pump Package (15 GPM, 1-1/2 HP, 12 STAGES, 1 PH, 230 V)

👁️ [COUNT] People are currently viewing this product.

B15P4JP15221-02

$1,217.67 USD
$3,653.00 USD $1,217.67 USD
Sale Sold out
Shipping calculated at checkout.

View price in cart

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

Berkeley B15P4JP15221, 4" Submersible Pump Package, 15 GPM, 1-1/2 HP, 12 STAGES, 1 PH, 230 V, 2 Wires,

Applications
Precision-engineered, corrosion-resistant Series J Composite Pumps in 10, 15, 20, and 30 GPM deliver efficient, dependable performance even in rough, aggressive water. Built to deliver long-term trouble-free service.
Features
Staging System Our proven SignaSeal staging system incorporates a harder-than-sand ceramic wear surface that when incorporated with our floating impeller design, greatly reduces problems with abrasives, sand lock-up and running dry.
Discharge Corrosion-resistant fiberglass reinforced thermoplastic for durability in aggressive water. Large octagon wrench area for ease of installation.
Discharge Bearing Exclusive selflubricating Nylatron bearing resists wear from sand.
Intake Corrosion-resistant fiberglass reinforced thermoplastic for durability in aggressive water.
Shaft Positive drive from 7/16" hexagonal heavy-duty 300 grade stainless steel.
Coupling Stainless steel press fit to pump shaft. Couples to all standard NEMA motors.
Shell Heavy-walled corrosionresistant stainless steel. Threaded for easy servicing.
Check Valve Durable internal poppet type check valve.
Cable Guard Corrosion-resistant stainless steel guard protects motor leads. Tapered ends prevent pump from catching on well.
Intake Screen Corrosion-proof polypropylene.

Specifications

Brand
Berkeley
Model Number
B15P4JP15221
Type
4" Submersible Pump Package
Series
JP Composite Series
Package Contents
Pump & Motor
GPM Series
15
HP
1-1/2
STAGES
12
PH
1
Volts
230
# of Wires
2
Weight lbs.
43
Control
Not Included
Optional Control
N/A
Warranty
1 Year
Notes & Pump Curve
See Support Documents
