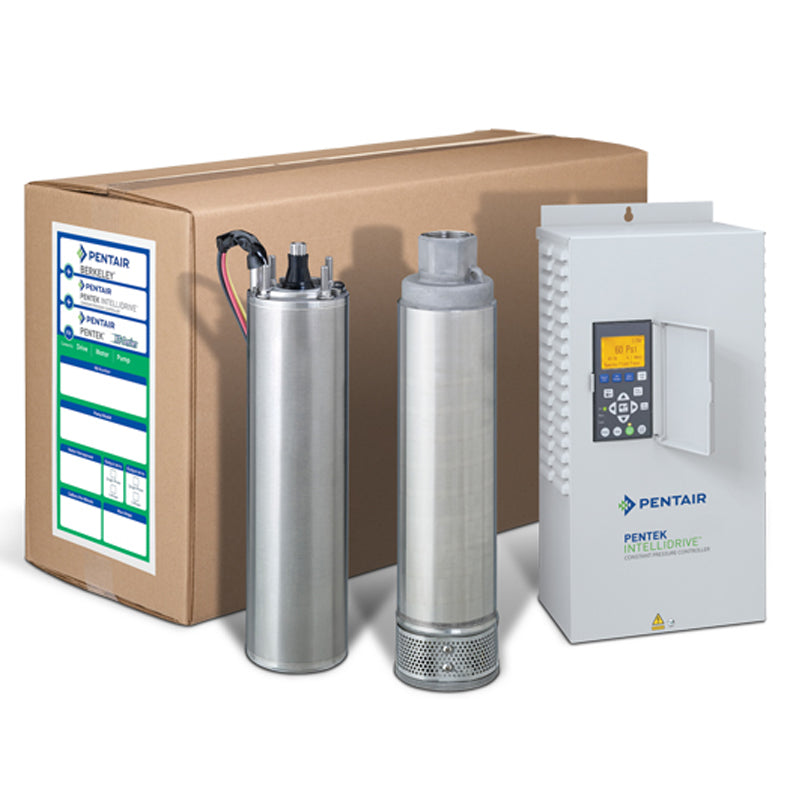

B10PIK20-80 BERKELEY Intellekit, Contains Submersible Motor, Pump and Variable Frequency Drive (10 Flow Series, 2 HP, 80 Hz)

B10PIK20-80 BERKELEY Intellekit, Contains Submersible Motor, Pump and Variable Frequency Drive (10 Flow Series, 2 HP, 80 Hz)

B10PIK20-80-01

$2,369.64 USD
$2,369.64 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

BERKELEY B10PIK20-80, Pentek Intellikit Pre-Specified and Packaged Constant Pressure Systems Type, 10 Flow Series, 2 HP, 80 Hz,
Applications
The Pentek Intellikit Constant Pressure Controller automatically adjusts motor speeds to meet changes in water demand. Instantaneous feedback from an electronic pressure transducer instructs the drive to change the submersible well pump motor speed to maintain constant pressure throughout the system.
Features
Maintain constant water pressure for submersible well pump systems, similar to municipal water systems
Includes Pentek Submersible Motor,
Includes Berkeley Submersible Pump
Includes Pentek Intellidrive Variable Frequency Drive
The Pentek Intellidrive Constant Pressure Controller automatically adjusts motor speeds to meet changes in water demand. Instantaneous feedback from an electronic pressure transducer instructs the drive to change the submersible well pump motor speed to maintain constant pressure throughout the system.
PENTEK Submersible 3-Phase Motor, Built with the latest design, manufacturing and testing technology, Encapsulated stainless steel design and professional-grade insulation, provide longer life in harsh environments, 100% factory pressure- and, run-tested
BERKELEY Submersible Pump, Submersible pumps deliver efficient and dependable performance even in rough, aggressive water, One of the few manufacturers of both pumps and pressurized water storage tanks, now sold in over 100 countries
PENTEK INTELLIDRIVE Variable Frequency Drive, Maintains constant pressure output regardless of fluctuating demand, Extends life of pump and motor, Utilizes a smaller pressure tank for a space-saving solution
80Hz Kits utilize an undersized liquid end running at higher speed to match pump performance of the curve equivalent to the driving motor. Maximum life expectancy of the liquid end is obtained using 60Hz solutions.

Specifications

Brand
BERKELEY
Catalog Number
B10PIK20-80
Type
Pentek Intellikit Pre-Specified and Packaged Constant Pressure Systems
Flow Series
10
HP
2
Shut Off Head TDF (ft)
795
At Rated Flow TDH (ft)
498
Pump
L10P4EMGS
Drive
PID20
Motor
P43B0020A3-C
Hz
80
Notes
See Support Documents

Support Documents (pdf)
