Berkeley Pumps

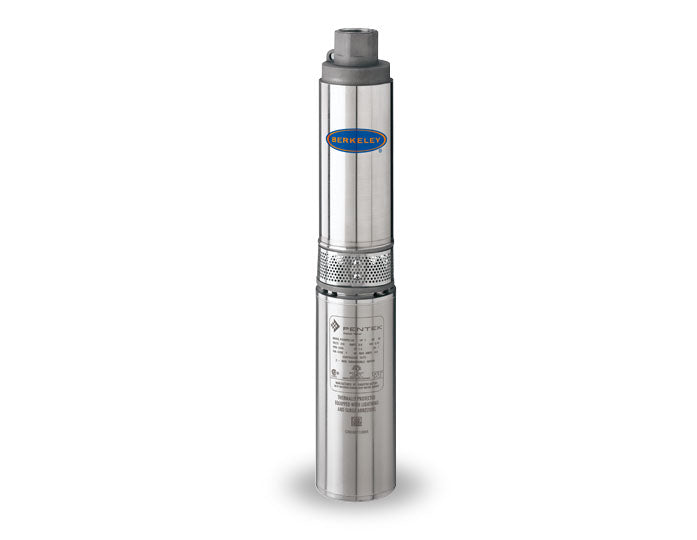

B10P4MS05221-03 Berkeley 4" Submersible Pump Package (10 GPM, 1/2 HP, 7 STAGES, 1 PH, 230 V)

B10P4MS05221-03 Berkeley 4" Submersible Pump Package (10 GPM, 1/2 HP, 7 STAGES, 1 PH, 230 V)

👁️ [COUNT] People are currently viewing this product.

B10P4MS05221-03

$747.00 USD
$2,241.00 USD $747.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Berkeley B10P4MS05221, 4" Submersible Pump, 10 GPM, 1/2 HP, 7 STAGES, 1 PH, 230 V, 2 Wires,

Applications
Precision-engineered, high-qquality, rugged MGS Stainless Steel Series Pumps deliver efficient, dependable performance even in rough, aggressive water.
Features
Proven SignaSeal Staging System Incorporates A Harder-Than-Sand Ceramic Wear Surface That When Incorporated With Our Floating Impeller Design, Greatly Reduces Problems With Abrasives, Sand Lock-Up and Running Dry
300 Grade Stainless Steel Discharge is Corrosion-Resistant for Durability in Aggressive Water.
Exclusive Self-Lubricating NYLATRON Discharge Bearing Resists Wear From Sand
Corrosion-Resistant 300 Grade Stainless Steel Intake for Durability in Aggressive Water
Positive Drive Shaft Made From 7/16" Hexagonal Heavy-Duty 300 Grade Stainless Steel
Stainless Steel Coupling Press Fit to Pump Shaft. Couples To All Standard NEMA Motors
Highest Grade Shell Made of Heavy-Walled Corrosion-Resistant Stainless Steel, Threaded for Easy Servicing
Durable, Internal, Spring-Loaded Check Valve
Corrosion-Resistat Stainless Steel Cable Guard Protects Motor Leads. Tapered Ends Prevent Pump From Catching On Well
PENTEK XE Motor is NEMA Standard All Stainless Construction, Water Filled

Specifications

Brand
Berkeley
Model Number
B10P4MS05221
Type
4" Submersible Pump
Series
MGS Series Stainless Steel
Package Contents
Pump & Motor
GPM Series
10
HP
1/2
STAGES
7
PH
1
VOLTS
230
# of Wires
2
Weight lbs.
26
Control
Not Included
Optional Control
N/A
Warranty
1 Year Warranty
Notes & Pump Curve
See Support Documents

Support Documents (pdf)
