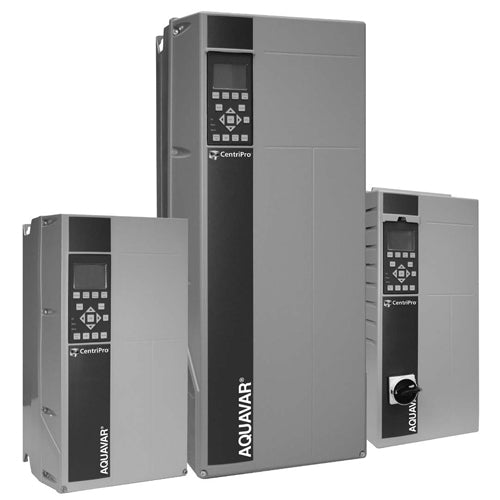

AVA40600C0F0X0X1 Goulds Pumps Aquavar IPC Variable Speed Controller (Variable Speed Controller , 380-460 Input Voltage, 3 Input Phase, 3R Type)

Applications
The Aquavar IPC variable speed controller brings the latest in pump drive technology and programming. The drive and interface are designed to give you advanced capabilities that help you effectively and efficiently operate your system.
Features
Nominal HP values are for reference only. Size Aquavar by maximum output amps of the motor.
Includes: 4-20mA, 300psi transducer and 16 cable
Wide range of standard and permanent magnet motors with power up to 90 kw / 450 hp
Developed by pump experts and optimized for controlling pumps
Submersible and above ground applications
Easier start-up and programming with Start-Up Genie
Two wire multi-pump connection for faster installation
Hand on, Off, and Auto-On buttons available for easy pump operation at the keypad. No toggling between local and remote operation
Multi-pump configuration for up to four (4) pumps no need for PLC
System redundancy with multi-master control in case of drive failure
Wide range of voltage and enclosure option

Specifications

Brand
Goulds Pumps
Catalog Number
AVA40600C0F0X0X1
Type
Variable Speed Controller
Series
Aquavar IPC
Input Voltage
380-460
Input Phase
3
Type
3R
Cont. Output Amps @ 45C Ambient
80
Cont. Output Amps @ 50C Ambient
72
Nominal Surface Motor HP
60
Nominal Sub. Motor HP 4" / 6" & Up
50
Frame Size
C1
DV / DT Load Filter NEMA 3R
V1K80A03
Repair PN for transducer
9K712
Repair PN for transducer and 16' cable
9K755
Notes
See Support Documents
