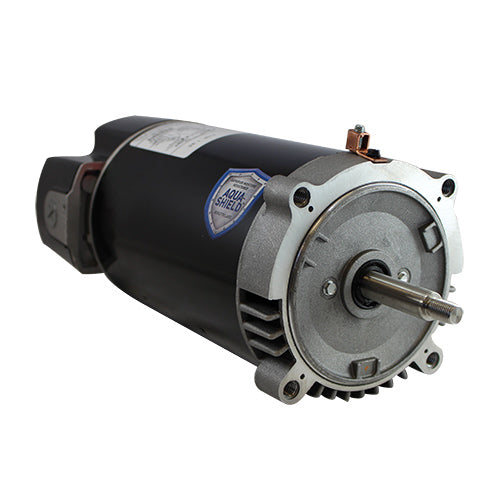

AST165 US Motor Pool & Spa Motor (1.65 HP, ODP, 3450 RPM, 60 Hz, 115/230V, 56J Frame)

Name: AST165 US Motor Pool & Spa Motor (1.65 HP, ODP, 3450 RPM, 60 Hz, 115/230V, 56J Frame)
Brand: U.S. Motors
SKU: AST165
Price: 265.68 USD
Availability: InStock

SKU:AST165

$265.68 USD

~~$301.00 USD~~ $265.68 USD

Sale Sold out

Shipping calculated at checkout.

1 total reviews

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

AST165 US Motor (1.65 HP, ODP, 3450 RPM, 60 Hz, 115/230V, 56J Frame)

AQUA-SHIELD EZ48 Pool & Spa Motor

Switch Design 5.5" Frame Dia.

C-Flange Category "J"

Standard Efficient 7/16-20 Thread

THP Rated 1081 Design

Model_Number

C055JMG2155013J

PRODUCT NAME

1.65 HP - ODP - 3450

PHASETYPE

1_CAPACITOR START

MOTOR ENCLOSURE

ODP

HORSEPOWER

1.65

POLES

NUMBER SPEEDS

RPM

3450

HERTZ

VOLTS PRIMARY

230/115 V

VOLTS

230

VOLTS 2

115

FRME

SHAFT CODE

STATOR DIAMETER

5.5

STACK

3.5

MOUNTING

C-FACE

MOTOR TYPE

FHP

OPPOSITE END BEARING

6203

SHAFT END BEARING

6203

AMBIENT

ROTATION

CCW DRIVE END

STARTCAPMFD

198.45

SHIPPING WEIGHT

THERMAL PROTECTION

AUTOMATIC RESET

BREAKDOWN TORQUE

105.9

BREAKDOWN TORQUE UOM

OZFT

LOCKED ROTOR TORQUE

30.34

LOCKED ROTOR TORQUE UOM

OZFT

INSULATION CLASS

KVA CODE LETTER

LOCKED ROTOR AMPS

44.2

FULL LOAD AMPS PRIMARY

8.5/17.0
