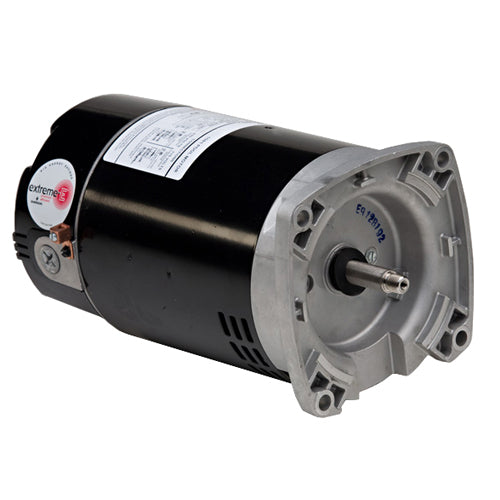

ASB850 U.S. Motors Square Flange Pool and Spa Motor (5 THP, 3450 RPM, 208-230 Voltage)

ASB850 U.S. Motors Square Flange Pool and Spa Motor (5 THP, 3450 RPM, 208-230 Voltage)

ASB850

$583.39 USD
$583.39 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors ASB850, Square Flange Pool and Spa Motors Type, 5 THP, 3450 RPM, 208-230 Voltage,

Applications
Optimized internal airflow design minimizes heat and moisture buildup inside the motor. Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor. Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger.
Features
Two Compartment
1081 Design
Open Dripproof
300 Series Stainless Steel Shaft
Shaft Threads - 1/2-20 UNF-2A
Voltage Selection Device (Dual Voltage Only)
Continuous Duty
Class B Insulated
Thermally Protected
50C Ambient
THP Rated

Specifications

Brand
U.S. Motors
Catalog Number
ASB850
Type
Square Flange Pool and Spa Motors
Catalog Number
ASB850
THP
5
Description
Standard Efficient, Total Horsepower Rated
RPM
3450
Voltage
208-230
Freq
60
THP Amps
21.0-19.4
Motor Frame
56Y
Length Less Shaft
56Y
Approx. Weight
50
Category
S
Frame Diameter
6.5"
Design
Switchless
Enclosure
ODP
Material
300 Series Stainless Steel
Discount symbol
DS-FPS
Notes
See Support Documents

Support Documents (pdf)
