U.S. Motors

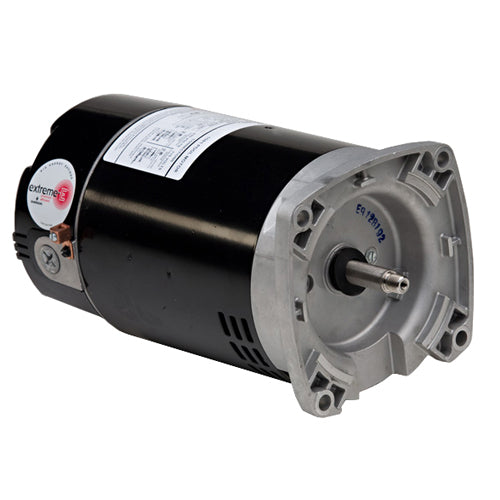

ASB847 U.S. Motors Square Flange Pool and Spa Motor (1.25 THP, 3450 RPM, 230 /115 Voltage)

ASB847 U.S. Motors Square Flange Pool and Spa Motor (1.25 THP, 3450 RPM, 230 /115 Voltage)

👁️ [COUNT] People are currently viewing this product.

ASB847

$267.36 USD
$0.00 USD $267.36 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

U.S. Motors ASB847, Square Flange Pool and Spa Motors Type, 1.25 THP, 3450 RPM, 230 /115 Voltage,

Applications
Optimized internal airflow design minimizes heat and moisture buildup inside the motor. Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor. Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger.
Features
Two Compartment
1081 Design
Open Dripproof
300 Series Stainless Steel Shaft
Shaft Threads - 1/2-20 UNF-2A
Voltage Selection Device (Dual Voltage Only)
Continuous Duty
Class B Insulated
Thermally Protected
50C Ambient
THP Rated

Specifications

Brand
U.S. Motors
Catalog Number
ASB847
Type
Square Flange Pool and Spa Motors
Catalog Number
ASB847
THP
1.25
Description
Standard Efficient, Total Horsepower Rated
RPM
3450
Voltage
230 /115
Freq
60
THP Amps
7.0/14.0
Motor Frame
56Y
Length Less Shaft
12.49
Approx. Weight
23
Category
S
Frame Diameter
6.5"
Design
Switchless
Enclosure
ODP
Material
300 Series Stainless Steel
Discount symbol
DS-FPS
Notes
See Support Documents

Support Documents (pdf)
