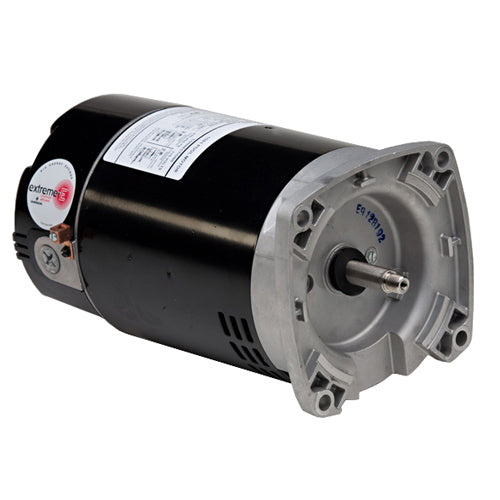

ASB844 U.S. Motors Square Flange Pool and Spa Motor (3.45 THP, 3450 RPM, 208-230 Voltage)

ASB844 U.S. Motors Square Flange Pool and Spa Motor (3.45 THP, 3450 RPM, 208-230 Voltage)

[COUNT] shoppers are looking at this right now

ASB844

$589.85 USD
$0.00 USD $589.85 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors ASB844, Square Flange Pool and Spa Motors Type, 3.45 THP, 3450 RPM, 208-230 Voltage,

Applications
Optimized internal airflow design minimizes heat and moisture buildup inside the motor. Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor. Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger.
Features
Two Compartment
1081 Design
Open Dripproof
300 Series Stainless Steel Shaft
Shaft Threads - 1/2-20 UNF-2A
Voltage Selection Device (Dual Voltage Only)
Continuous Duty
Class B Insulated
Thermally Protected
50C Ambient
THP Rated

Specifications

Brand
U.S. Motors
Catalog Number
ASB844
Type
Square Flange Pool and Spa Motors
Catalog Number
ASB844
THP
3.45
Description
Standard Efficient, Total Horsepower Rated
RPM
3450
Voltage
208-230
Freq
60
THP Amps
14.8-13.5
Motor Frame
56Y
Length Less Shaft
14.24
Approx. Weight
38
Category
S
Frame Diameter
6.5"
Design
Switchless
Enclosure
ODP
Material
300 Series Stainless Steel
Discount symbol
DS-FPS
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
