U.S. Motors

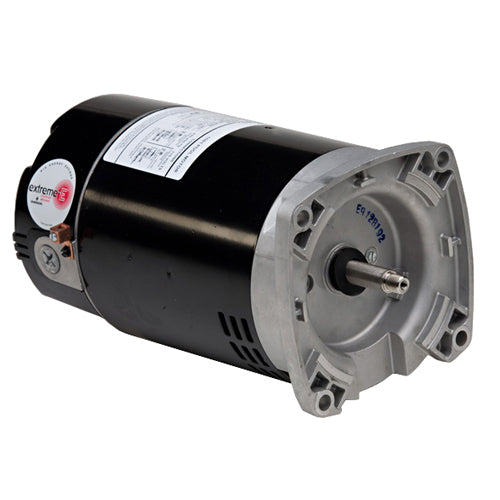

ASB842 U.S. Motors Square Flange Pool and Spa Motor (2.25 THP, 3450 RPM, 208-230/115 Voltage)

ASB842 U.S. Motors Square Flange Pool and Spa Motor (2.25 THP, 3450 RPM, 208-230/115 Voltage)

ASB842

$415.17 USD
$415.17 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors ASB842, Square Flange Pool and Spa Motors Type, 2.25 THP, 3450 RPM, 208-230/115 Voltage,
Applications
Optimized internal airflow design minimizes heat and moisture buildup inside the motor. Internal bearing cover protects the drive/ pump end ball bearing from water and debris that may occur inside of the motor. Three additional layers of drive/pump end bearing protection: Double Sealed Ball Bearing, Lip Seal, Water Slinger.
Features
Two Compartment
1081 Design
Open Dripproof
300 Series Stainless Steel Shaft
Shaft Threads - 1/2-20 UNF-2A
Voltage Selection Device (Dual Voltage Only)
Continuous Duty
Class B Insulated
Thermally Protected
50C Ambient
THP Rated

Specifications

Brand
U.S. Motors
Catalog Number
ASB842
Type
Square Flange Pool and Spa Motors
Catalog Number
ASB842
THP
2.25
Description
Premium Energy Efficient, Total Horsepower Rated (Suitable for 50Hz)
RPM
3450
Voltage
208-230/115
Freq
60
THP Amps
9.7-9.0/18.0
Motor Frame
56Y
Length Less Shaft
13.74
Approx. Weight
33
Category
S
Frame Diameter
6.5"
Design
Switchless
Enclosure
ODP
Material
300 Series Stainless Steel
Discount symbol
DS-FPS
Notes
See Support Documents

Support Documents (pdf)
View full details
