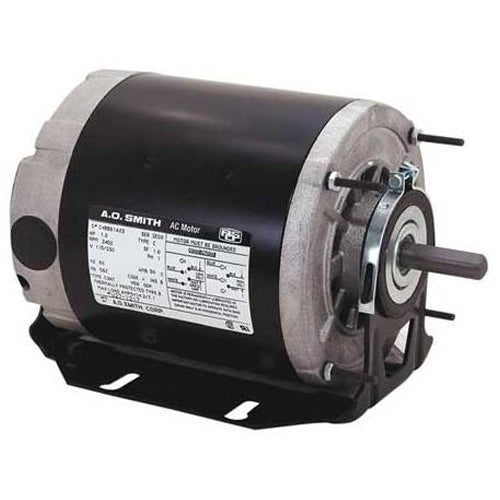

ARB2024L3 Century Belt Drive and Blower Motor, Split Phase (1/4 HP, 48Y Frame, 1725 RPM)

ARB2024L3 Century Belt Drive and Blower Motor, Split Phase (1/4 HP, 48Y Frame, 1725 RPM)

ARB2024L3

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Model Number: ARB2024L3, HP: 1/4, RPM: 1725, Volts: 115/208-230, Frame: 48Y, Enclosure: TEAO, Type: Split Phase Resilient Base Motor,

Applications
Belt Drive Fans and Blowers, HVAC
Features
Class B Ins. (Class A see notes); Reversible; Continuous Duty; Sleeve & Ball Bearing; Energy Efficient $ (see notes); 60 HZ; Open and Encloseds

Tech Specs.

Brand
A.O. Smith
Model Number
ARB2024L3
HP
1/4
RPM
1725
Volts
115/208-230
Full Load Amps
3.3/1.7-1.7
Service Factor
1
Frame
48Y
Enclosure
TEAO
Apx. Wt. (lb)
16
Phase
Split Phase
Protector
Auto
Type
Split Phase Resilient Base Motor
Aprox "C"
9.4
Dim "AG"
7.8
Motor Mount
Resilient Base
ARB2024L3

Support Documents (pdf)

Product Literature
