AMT

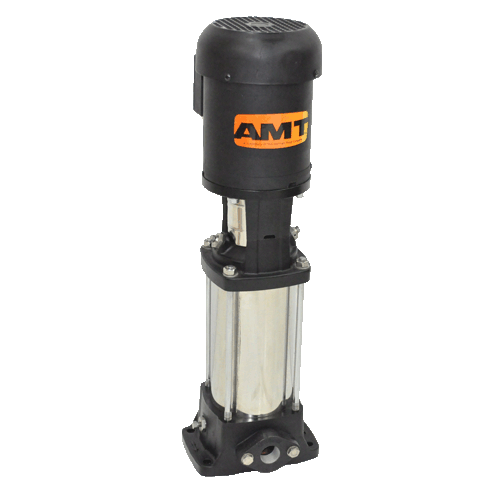

MSV1-6-3P AMT Multistage Pump (3/4 HP, 6 Stages, 208-230/460 Volt, 3 Phase)
MSV1-6-3P AMT Multistage Pump (3/4 HP, 6 Stages, 208-230/460 Volt, 3 Phase)
[COUNT] shoppers are looking at this right now
No reviews
SKU:MSV1-6-3P
Regular price
$921.33 USD
Regular price
$1,382.00 USD
Sale price
$921.33 USD
Shipping calculated at checkout.
Quantity
Approximate 2-4 Week Lead Time
Couldn't load pickup availability
AMT MSV1-6-3P, MSV1 Multistage Pumps Series, 3/4 HP, 6 STAGES, 208-230/460 VAC
| Applications | |
| These AMT commercial/industrial centrifugal pumps are non-self-priming (gravity feed) units designed to handle high-pressure low flow liquid transfer applications where no suction lift is required. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/sprinkler systems often referred to as a Jockey Pump. These pumps have NOT been investigated for use in potable (drinking) water systems. | |
| Features | |
| 304 Series Stainless Steel Components with Teflon Wear Rings | |
| Cast Iron Base & Adapter | |
| 1" NPT Cast Iron Flanges | |
| NEMA 56C Dual Cycle 50/60 Hz, Single or Three Phase TEFC Motors | |
| EPDM/Tungsten Carbide Seal with Easy Replacement Feature | |
| Optional ANSI/ASME 250# Flange Kit | |
| Models Available in 2 thru 27 Stages | |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
MSV1-6-3P
|
|
Type
|
Multistage Pumps
|
|
Series
|
MSV1 Multistage Pumps
|
|
HP
|
3/4
|
|
STAGES
|
6
|
|
VAC
|
208-230/460
|
|
SHIP WT (Lbs.)
|
60
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
