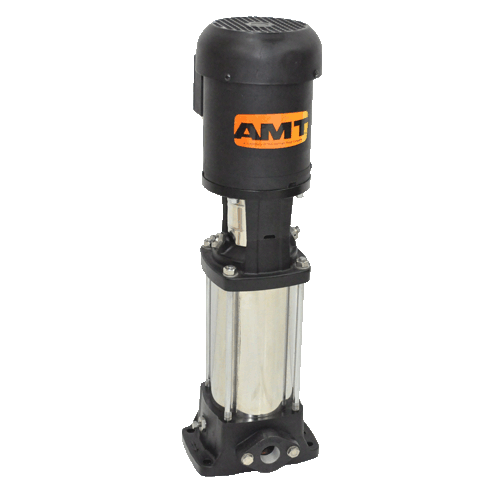

MSV1-4-3P AMT Multistage Pump (1/2 HP, 4 Stages, 208-230/460 Volt, 3 Phase)

MSV1-4-3P AMT Multistage Pump (1/2 HP, 4 Stages, 208-230/460 Volt, 3 Phase)

[COUNT] shoppers are looking at this right now

MSV1-4-3P

$834.67 USD
$1,252.00 USD $834.67 USD
Sale Sold out
Shipping calculated at checkout.

Approximate 2-4 Week Lead Time
AMT MSV1-4-3P, MSV1 Multistage Pumps Series, 1/2 HP, 4 STAGES, 208-230/460 VAC
Applications
These AMT commercial/industrial centrifugal pumps are non-self-priming (gravity feed) units designed to handle high-pressure low flow liquid transfer applications where no suction lift is required. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/sprinkler systemsoften referred to as a Jockey Pump. These pumps have NOT been investigated for use in potable (drinking) water systems.
Features
304 Series Stainless Steel Components with Teflon Wear Rings
Cast Iron Base & Adapter
1" NPT Cast Iron Flanges
NEMA 56C Dual Cycle 50/60 Hz, Single or Three Phase TEFC Motors
EPDM/Tungsten Carbide Seal with Easy Replacement Feature
Optional ANSI/ASME 250# Flange Kit
Models Available in 2 thru 27 Stages

Specifications

Brand
AMT
Catalog Number
MSV1-4-3P
Type
Multistage Pumps
Series
MSV1 Multistage Pumps
HP
1/2
STAGES
4
VAC
208-230/460
SHIP WT (Lbs.)
57
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
