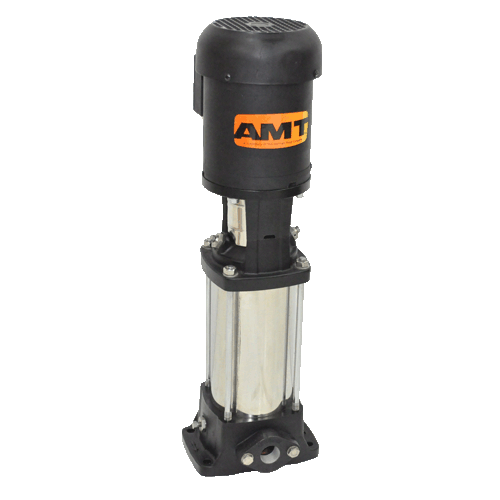

AMT Pumps MSV1-4-1P Multistage Pump (1/2 HP, 4 Stages, 115/208-230V, 1 Phase)

AMT Pumps MSV1-4-1P Multistage Pump (1/2 HP, 4 Stages, 115/208-230V, 1 Phase)

MSV1-4-1P

$737.01 USD
$1,135.00 USD $737.01 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT MSV1-4-1P, MSV1 Multistage Pumps Series, 1/2 HP, 4 STAGES, 115/208-230 VAC
Applications
These AMT commercial/industrial centrifugal pumps are non-self-priming (gravity feed) units designed to handle high-pressure low flow liquid transfer applications where no suction lift is required. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/sprinkler systemsoften referred to as a Jockey Pump. These pumps have NOT been investigated for use in potable (drinking) water systems.
Features
304 Series Stainless Steel Components with Teflon Wear Rings
Cast Iron Base & Adapter
1" NPT Cast Iron Flanges
NEMA 56C Dual Cycle 50/60 Hz, Single or Three Phase TEFC Motors
EPDM/Tungsten Carbide Seal with Easy Replacement Feature
Optional ANSI/ASME 250# Flange Kit
Models Available in 2 thru 27 Stages

Specifications

Brand
AMT
Catalog Number
MSV1-4-1P
Type
Multistage Pumps
Series
MSV1 Multistage Pumps
HP
1/2
STAGES
4
VAC
115/208-230
SHIP WT (Lbs.)
61
Warranty
1 Year
Notes
See Support Documents

Support Documents (pdf)
View full details
