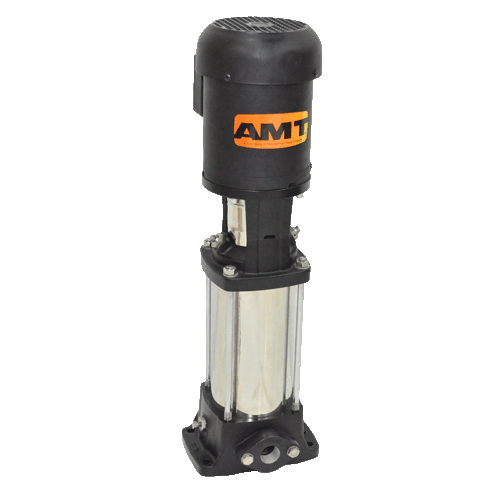

AMT Pumps MSV1-23-1P Multistage Pump (3 HP, 23 Stages, 208-230V, 1 Phase)
AMT Pumps MSV1-23-1P Multistage Pump (3 HP, 23 Stages, 208-230V, 1 Phase)
No reviews
SKU:MSV1-23-1P
Regular price
$1,340.91 USD
Regular price
$2,065.00 USD
Sale price
$1,340.91 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT MSV1-23-1P, MSV1 Multistage Pumps Series, 3 HP, 23 STAGES, 208-230 VAC
| Applications | |
| These AMT commercial/industrial centrifugal pumps are non-self-priming (gravity feed) units designed to handle high-pressure low flow liquid transfer applications where no suction lift is required. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/sprinkler systemsoften referred to as a Jockey Pump. These pumps have NOT been investigated for use in potable (drinking) water systems. | |
| Features | |
| 304 Series Stainless Steel Components with Teflon Wear Rings | |
| Cast Iron Base & Adapter | |
| 1" NPT Cast Iron Flanges | |
| NEMA 56C Dual Cycle 50/60 Hz, Single or Three Phase TEFC Motors | |
| EPDM/Tungsten Carbide Seal with Easy Replacement Feature | |
| Optional ANSI/ASME 250# Flange Kit | |
| Models Available in 2 thru 27 Stages | |
Specifications | |
Brand |
AMT |
Catalog Number |
MSV1-23-1P |
Type |
Multistage Pumps |
Series |
MSV1 Multistage Pumps |
HP |
3 |
STAGES |
23 |
VAC |
208-230 |
SHIP WT (Lbs.) |
102 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
