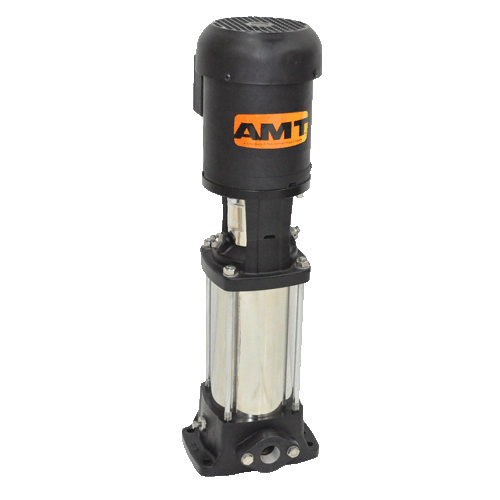

AMT Pumps MSV1-10-3P Multistage Pump (1 HP, 10 Stages, 208-230/460V, 3 Phase)
AMT Pumps MSV1-10-3P Multistage Pump (1 HP, 10 Stages, 208-230/460V, 3 Phase)
SKU:MSV1-10-3P
Regular price
$925.97 USD
Regular price
$1,426.00 USD
Sale price
$925.97 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
AMT MSV1-10-3P, MSV1 Multistage Pumps Series, 1 HP, 10 STAGES, 208-230/460 VAC
| Applications | |
| These AMT commercial/industrial centrifugal pumps are non-self-priming (gravity feed) units designed to handle high-pressure low flow liquid transfer applications where no suction lift is required. Typical installations include: hot and chilled water, boiler feed, condensate return, irrigation, high pressure washdown, booster service, and fire protection/sprinkler systemsoften referred to as a Jockey Pump. These pumps have NOT been investigated for use in potable (drinking) water systems. | |
| Features | |
| 304 Series Stainless Steel Components with Teflon Wear Rings | |
| Cast Iron Base & Adapter | |
| 1" NPT Cast Iron Flanges | |
| NEMA 56C Dual Cycle 50/60 Hz, Single or Three Phase TEFC Motors | |
| EPDM/Tungsten Carbide Seal with Easy Replacement Feature | |
| Optional ANSI/ASME 250# Flange Kit | |
| Models Available in 2 thru 27 Stages | |
Specifications | |
Brand |
AMT |
Catalog Number |
MSV1-10-3P |
Type |
Multistage Pumps |
Series |
MSV1 Multistage Pumps |
HP |
1 |
STAGES |
10 |
VAC |
208-230/460 |
SHIP WT (Lbs.) |
68 |
Warranty |
1 Year |
Notes |
See Support Documents |
Support Documents (pdf) |
