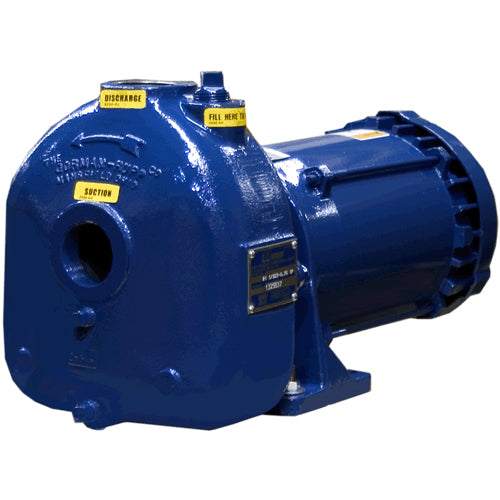

AMT Pumps 81-1/2E3-X1.5-1P Self-Priming Pump w/ Explosion Proof Motor (1-1/2 HP, 115/230V, 1 Phase, 1.5" Suction, 1.5" Discharge)

AMT Pumps 81-1/2E3-X1.5-1P Self-Priming Pump w/ Explosion Proof Motor (1-1/2 HP, 115/230V, 1 Phase, 1.5" Suction, 1.5" Discharge)

81-1/2E3-X15-1P

$3,069.48 USD
$4,727.00 USD $3,069.48 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 81-1/2E3-X15-1P, Self-Priming Pumps Coupled to Explosion Proof Motors,
Applications
This line of Gorman-Rupp self-priming centrifugal pumps are coupled to an hazardous duty explosion proof motor. These pumps are designed for use in hazardous environments and/or for handling flammable liquids. 1-1/2" and 2" NPT port sizes available with single or three phase motors. All models are self-priming and are equipped with Viton seals with carbon and Ni-resist faces capable of handling liquids with temperatures to 160 F. Maximum flow to 128 GPM and maximum operating pressure to 31 PSI.
Features
Cast Iron Construction
Viton Seals with Carbon and Ni-resist Faces
1-1/2" & 2" NPT Port Sizes
Maximum Temperature 160 F
Solids Handling to 3/8" Diameter
Self-priming to 20 ft.
Single to Three Phase 3450 RPM Motors

Specifications

Brand
AMT
Catalog Number
81-1/2E3-X15-1P
Type
Explosion Proof Motors
Series
Self-Priming Pumps Coupled to Explosion Proof Motors
Curve
B
Suction
1-1/2"
Discharge
 1-1/2"
Driver Type & HP
Elect. Motor 1.5 HP
Basic Construction
Gray Iron
Seal Type & Elastomer/Faces
Viton Carbon Ni-resist
VAC
115/230
Cycle
60 Cycle
Motor Enclosure
X-Proof
Ship Wt. (Lbs.)
76
Warranty
1 Year
Notes
See Support Documents
