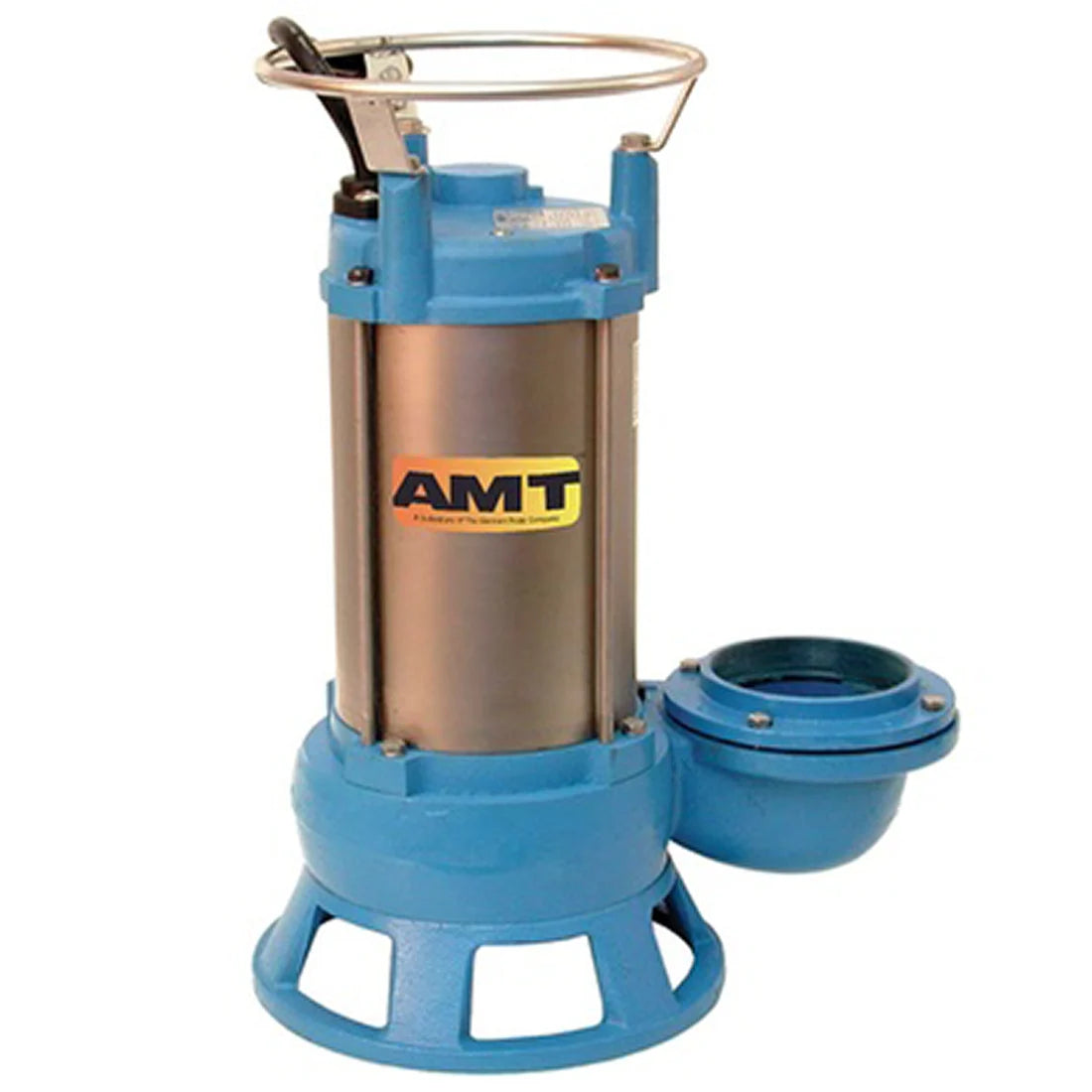

5764-95 AMT 3" Cast Iron/SS Submersible Shredder Sewage Pump (2 HP, 3 Phase, 230 Volt, 60 Hz, 3" Port Size)

5764-95 AMT 3" Cast Iron/SS Submersible Shredder Sewage Pump (2 HP, 3 Phase, 230 Volt, 60 Hz, 3" Port Size)

[COUNT] shoppers are looking at this right now

5764-95

$1,638.00 USD
$2,457.00 USD $1,638.00 USD
Sale Sold out
Shipping calculated at checkout.

AMT 5764-95, Submersible Shredder Sewage Pump,3" NPT DIS, 2 HP, 3 PH, 230 V

Applications
AMT Submersible Shredder Sewage pumps feature an enhanced spiral shredder mechanism plate and carbide tipped impeller to prevent clogging and reduce maintenance when cutting through stringy, fibrous and sludge type waste. Applications include: sewage pumping stations, septic tanks, sewage treatment plants, dirty water drainage, flood and emergency. Motors are rated continuous duty and single phase models have thermal overload protection.
Features
Cast Iron Construction
Stainless Steel Motor Housing
Double Mechanical Seal with Carbide Lower Seal
Carbide Tipped Impeller
UL/CSA Listed
Suction Screen
Carrying Handle
Maximum Temperature 104 F
QSP - Quick Ship Pumps

Specifications

Brand
AMT
Catalog Number
5764-95
Type
Sewage Pumps
Series
Submersible Shredder Sewage Pump
Curve
B
DIS
3" NPT
HP
2
PH
3
V
230
Full Load Amps
6
Max Solids (Dia.)
1.1
Cord Length (Ft.)
18
A
6.5 [16.5]
B
10.4 [26.4]
C
5.5 [14.0]
D
6.5 [16.5]
W
14.0 [35.3]
H
17.5 [44.4]
Ship Wt. (Lbs.)
68
Warranty
1 Year
Notes
See Support Documents



Support Documents (pdf)
