AMT
AMT Pumps 5586-H6, 6" Engine Driven Trash Pump (Honda V-Twin OHV, Skid Base, 23 HP, 9 Hr Run Time, 20 Gal Tank, 6" Suc and Dis, Electric Start)
AMT Pumps 5586-H6, 6" Engine Driven Trash Pump (Honda V-Twin OHV, Skid Base, 23 HP, 9 Hr Run Time, 20 Gal Tank, 6" Suc and Dis, Electric Start)
SKU:5586-H6
Regular price
$13,225.97 USD
Regular price
$20,368.00 USD
Sale price
$13,225.97 USD
Unit price
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability

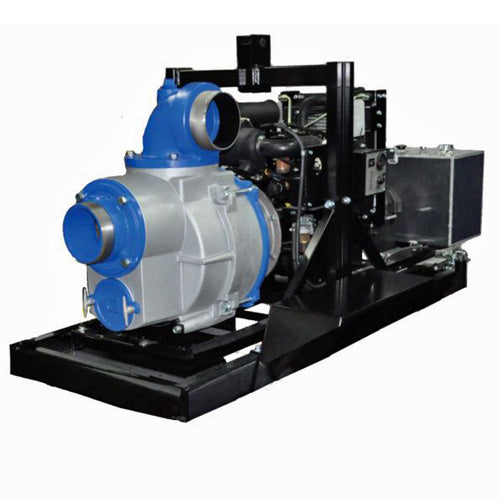

AMT 5586-H6, 6" Engine Driven Trash Pumps Series, Honda V-Twin OHV Driver, Skid,2 Cyl. Air Cooled,6" NPT SUC. SKID BASE. DOES NOT INCLUDE TIRES.
| Applications |
| The AMT 6" Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from railer. Digital tachometer/hourmeter installed. |
| Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection. |
| Features |
| Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability |
| Steel Suction Strainer and Nipple Included |
| Easy Cleanout and Service Features with the Unique AMT Patented Slide Mechanism |
| Seal Wash Feature for Extended Seal Life |
| Silicon Carbide/Viton Mechanical Seal and Buna-N O-rings and Check Valve |
| Built-in Check Valve for Fast Priming to 20 Feet |
| Maximum Solids Handling 3" |
| 6" NPT Port Size |
| Delivers up to 1,000 GPM |
| Digital Tachometer/ Hourmeter Installed |
| Maximum Temperature 180 F |
| 12 Volt DC Electric Start |
| Available in Trailer or Skid Mounted |
| D.O.T. Approved Trailer Refer to Your State and Local Codes for Local Codes for Registration |
|
Specifications |
|
|
Brand
|
AMT
|
|
Catalog Number
|
5586-H6
|
|
Type
|
Trash Pumps
|
|
Series
|
6" Engine Driven Trash Pumps
|
|
Driver
|
Honda V-Twin OHV
|
|
Base
|
Skid
|
|
Engine Type
|
2 Cyl. Air Cooled
|
|
Run Time (Hours)
|
9
|
|
Tank Size (Gal/Ltr.)
|
20 / 75.7
|
|
Ship Wt. (Lbs.)
|
725
|
|
HP Class
|
23
|
|
SUC
|
6" NPT
|
|
DIS
|
6" NPT
|
|
L
|
71.0"
|
|
W
|
33.0"
|
|
H
|
40.0"
|
|
Electric Start
|
Included
|
|
Oil Alert
|
Included
|
|
Warranty
|
1 Year
|
|
Notes
|
See Support Documents
|
