AMT

SKU:5585-H6

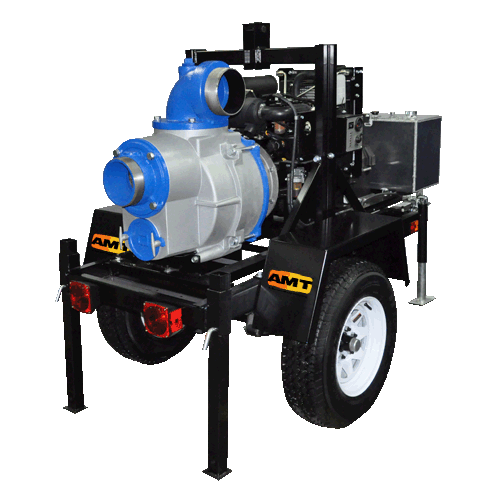

AMT 5585-H6, 6" Engine Driven Trash Pumps Series, Honda V-Twin OHV Driver, Trailer,2 Cyl. Air Cooled,6" NPT Suction,

Applications

The AMT 6" Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from railer. Digital tachometer/hourmeter installed.

Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection.

Features

Cast Aluminum with Cast Iron and Stainless Steel Components for Long Lasting Durability

Silicon Carbide/Viton Mechanical Seal and Buna-N O-rings and Check Valve

Steel Suction Strainer and Nipple Included

Seal Wash Feature for Extended Seal Life

Built-in Check Valve for Fast Priming to 20 Feet

Maximum Solids Handling 3

6" NPT Port Size

Delivers up to 1,000 GPM

Digital Tachometer/ Hourmeter Installed

Maximum Temperature 180 F

12 Volt DC Electric Start

Available in Trailer or Skid Mounted

D.O.T. Approved Trailer Refer to Your State and Local Codes for Local Codes for Registration

Easy Cleanout and Service Features with the Unique AMT Patented Slide Mechanism

Specifications
Brand	AMT
Catalog Number	5585-H6
Type	Trash Pumps
Series	6" Engine Driven Trash Pumps
Driver	Honda V-Twin OHV
Base	Trailer
Engine Type	2 Cyl. Air Cooled
Run Time (Hours)	9
Tank Size (Gal/Ltr.)	20 / 75.7
Ship Wt. (Lbs.)	1000
HP Class	23
SUC	6" NPT
DIS	6" NPT
L	99.0"
W	48.0"
H	62.0"
Electric Start	Included
Oil Alert	Included
Suction Hose	Not Included
Discharge Hose	Not Included - Scroll down for related products
Warranty	1 Year
Notes	See Support Documents
